T20 High-Speed Snake Spring Coupling: Advanced Metal Elastic Power Transmission for Demanding Machinery

High-speed rotating equipment requires a coupling that can transmit torque reliably while controlling vibration, absorbing shock, and accommodating the alignment errors that naturally occur between connected shafts. The T20 high-speed snake spring coupling is designed for this demanding role. As a flexible coupling with a metal elastic element, it combines a precision-engineered serpentine spring with robust hubs and protective components to create a durable connection for pumps, compressors, industrial drives, marine propulsion systems, aerospace equipment, and other high-performance machinery.

Unlike a rigid coupling, which transfers every shaft movement directly into the connected equipment, the T20 coupling introduces a controlled degree of flexibility into the drivetrain. Its snake-shaped spring element works between the coupling teeth, transmitting torque through a continuous metallic elastic medium. At the same time, the spring can flex to compensate for angular, parallel, and limited axial misalignment. This reduces the transmission of harmful vibration and helps protect bearings, seals, gears, shafts, and other connected components.

The T20 is particularly suitable for installations where operating speed, dynamic stability, compact construction, and service life are all important. Its metal spring element provides higher temperature resistance and greater durability than many non-metallic elastic elements, while its flexible construction provides smoother operation than a fully rigid coupling. For equipment designers and maintenance departments, this combination offers a practical way to improve drivetrain reliability without introducing unnecessary complexity.

T20 high speed snake spring coupling

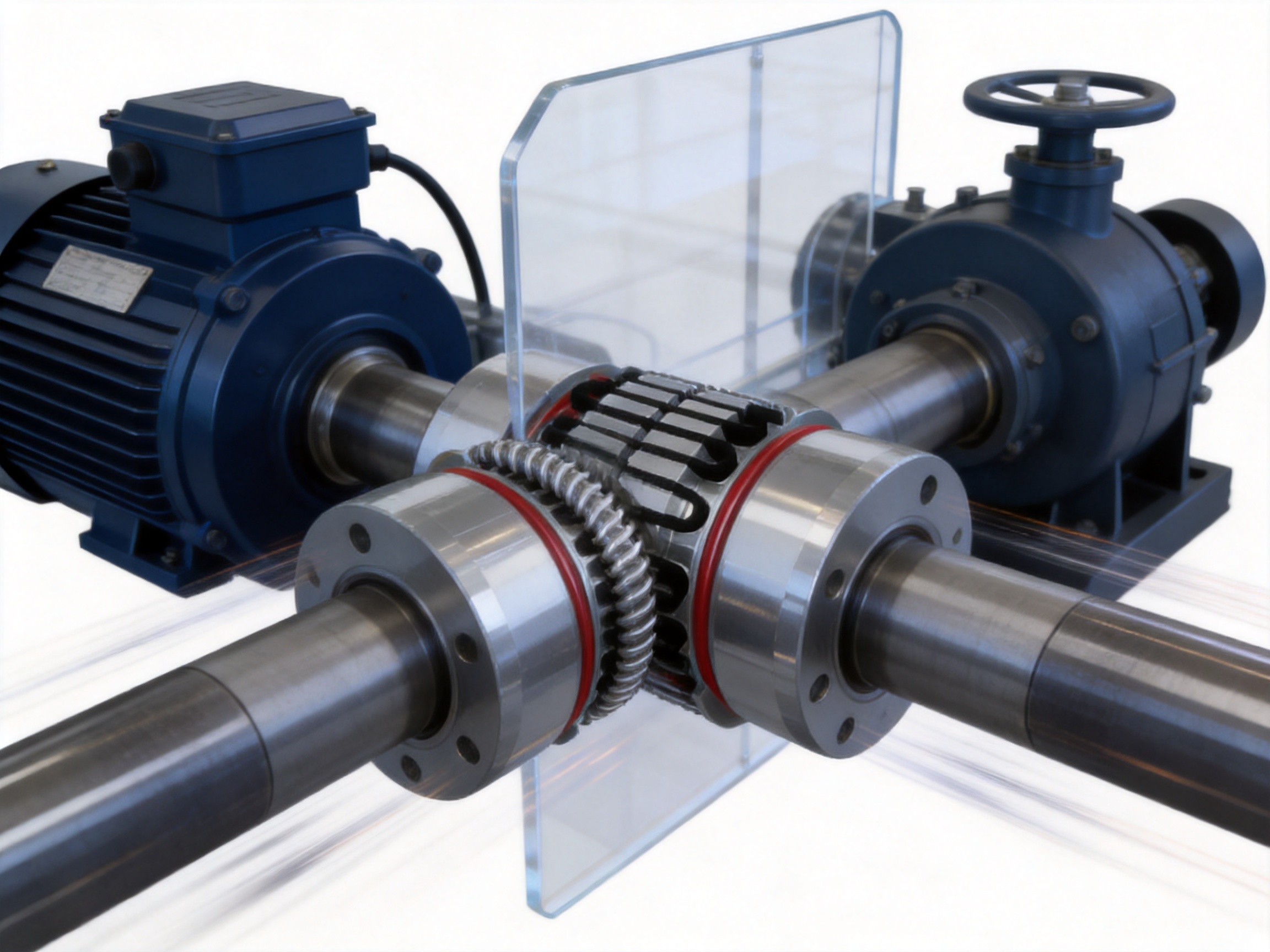

Understanding the T20 High-Speed Snake Spring Coupling

The T20 is a flexible coupling with a metal elastic element. Its main torque-transmitting component is a specially shaped spring that follows a serpentine or snake-like path around the circumference of the coupling. The spring is installed between the toothed portions of two coupling hubs. When the driving shaft rotates, the hub teeth press against the spring. The spring then transfers torque to the driven hub while flexing in response to load variations and shaft misalignment.

This operating principle is different from that of a rigid flange coupling. A rigid coupling depends on accurate shaft alignment because it has little or no capacity to absorb relative movement. The T20, by contrast, is designed to provide controlled flexibility. It does not eliminate the need for proper alignment, but it can accommodate the small deviations that arise from foundation settlement, thermal expansion, manufacturing tolerances, bearing movement, and installation conditions.

The spring element also acts as a mechanical damping medium. During acceleration, deceleration, load changes, or transient torque events, the spring can deform slightly and moderate the transfer of energy. This can reduce peak torque and limit the intensity of torsional vibration. The result is a drivetrain that operates more smoothly and places less stress on the machinery connected to the coupling.

Because the elastic element is metallic, the T20 can be appropriate for applications where heat, oil exposure, continuous duty, and repeated loading could shorten the life of certain rubber or polymer elements. The choice of material, spring geometry, surface treatment, and protective housing remains important, and the coupling should always be selected according to the actual speed, torque, temperature, environmental, and alignment requirements of the application.

Why High-Speed Machinery Needs a Flexible Coupling

Rotating machinery rarely operates under perfectly static conditions. A motor shaft, gearbox shaft, pump shaft, or compressor shaft may experience several types of relative movement during operation. Angular misalignment occurs when the centerlines of two shafts intersect at an angle. Parallel misalignment occurs when the shafts are parallel but offset. Axial movement occurs when the shafts move toward or away from each other.

These conditions may be caused by thermal growth, uneven foundations, bearing clearances, assembly tolerances, pipe loads, equipment vibration, or changes in operating temperature. Even a small misalignment can produce additional radial or axial forces if the coupling cannot accommodate it. Over time, these forces may cause bearing overheating, seal damage, shaft fatigue, gear wear, and increased energy consumption.

High-speed operation makes these effects more serious. As rotational speed increases, imbalance and misalignment generate greater centrifugal and dynamic forces. A coupling that is acceptable at moderate speed may become unsuitable at high speed if its mass distribution, balance quality, stiffness, or damping characteristics are not properly controlled.

The T20 addresses these requirements through a combination of flexible spring action, carefully manufactured hubs, and a compact rotating assembly. The metal spring transmits torque while permitting limited relative movement between the shafts. At the same time, the coupling can help reduce the transfer of torsional shocks from one machine to another. This is valuable in systems where starting torque, cyclic loading, or rapidly changing process conditions can create sudden drivetrain stress.

Core Design Features of the T20

Serpentine Metal Spring Element

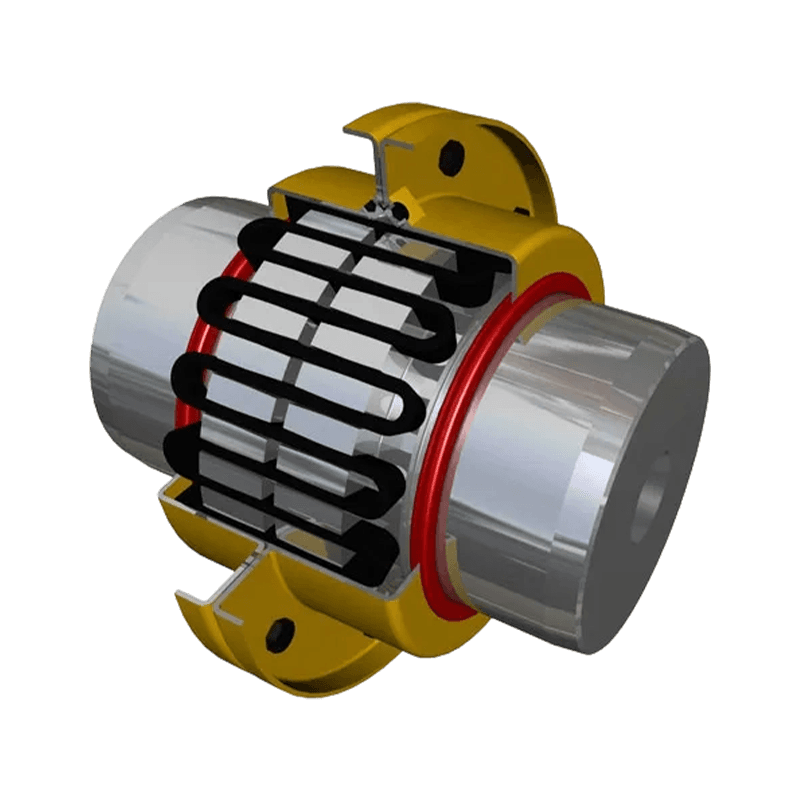

The defining feature of the T20 is its snake-shaped spring. The spring follows a controlled wave pattern around the coupling and engages with the teeth of the hubs. This design distributes the torque-transmitting interaction across multiple contact points rather than concentrating the entire load in one rigid interface.

When torque increases, the spring flexes progressively. This allows the coupling to transmit power while providing a degree of torsional compliance. The spring geometry can also help distribute load around the circumference, which supports smoother operation and reduces localized stress. Properly designed spring geometry is essential because it determines the coupling’s torque capacity, torsional stiffness, damping behavior, and misalignment capability.

Metal Elastic Performance

Metal elastic elements are valued for their resistance to fatigue, temperature, and many industrial operating conditions. Unlike some elastomeric elements, a metal spring does not depend primarily on rubber-like deformation. This can make it more suitable for applications involving elevated temperatures, oil mist, continuous operation, or demanding cyclic loads.

The actual performance of any metal spring depends on material quality, heat treatment, geometry, surface condition, and stress control. A reliable manufacturer must therefore control these factors during production. The T20 is intended to combine the resilience of a spring with the strength and durability required for industrial transmission systems.

Flexible Compensation Capability

The T20 can compensate for angular, parallel, and limited axial misalignment within its designed operating range. This flexibility helps reduce the forces transferred to connected shafts and bearings. It also provides a degree of tolerance for normal equipment movement during operation.

Misalignment compensation should not be treated as a substitute for alignment work. Excessive misalignment can overload the spring, increase heat generation, accelerate wear, and shorten the coupling’s service life. Correct installation remains essential. The advantage of the T20 is that it can accommodate practical operating movement while maintaining torque transmission and vibration control.

Damping and Shock Absorption

Sudden changes in load can generate torsional shocks. Examples include pump starts, compressor loading, conveyor jams, hoist movement, and changes in process resistance. A completely rigid connection transfers these shocks directly through the drivetrain. The T20 spring can deflect under transient loads and absorb part of the resulting energy.

This damping effect may reduce noise, torsional oscillation, and the likelihood of shock-related damage. It also helps create a smoother transition during starting and stopping. The amount of damping depends on the spring design, the transmitted torque, the rotational speed, the connected equipment, and the operating conditions.

Compact and Practical Construction

Space is often limited around motors, pumps, compressors, and gearboxes. The T20 is designed as a compact coupling solution that can be integrated into machinery without requiring an unnecessarily long shaft arrangement. A compact coupling can reduce the overall footprint of the drivetrain and simplify equipment layout.

Compact construction can also support easier guarding and maintenance. However, sufficient space must be left for inspection, spring replacement, fastener access, and safe removal. A coupling should never be installed in a position where routine inspection or protection from accidental contact is impossible.

Advantages Compared with Other Coupling Types

Different coupling types are intended for different operating conditions. No single coupling is ideal for every machine. The T20’s advantages become clearer when it is compared with common alternatives such as rigid couplings, elastomeric couplings, gear couplings, diaphragm couplings, and chain couplings.

Coupling type	Main strength	Typical limitation	Where the T20 can offer an advantage
Rigid coupling	High torsional stiffness and simple construction	Very limited misalignment compensation and shock absorption	Provides controlled flexibility and helps reduce transmitted vibration
Elastomeric coupling	Good vibration isolation and simple maintenance	Elastic element may be affected by heat, oil, aging, or chemical exposure	Metal spring offers strong temperature and fatigue performance
Gear coupling	High torque density and substantial misalignment capability	Requires lubrication and close attention to tooth wear	Can reduce lubrication-related maintenance when the application is suitable
Diaphragm coupling	High-speed operation and clean, non-lubricated design	May have specific axial and alignment limitations and can be sensitive to overload	Spring design provides a different balance of damping, flexibility, and torque transmission
Chain coupling	Simple design and economical torque transmission	Usually requires lubrication and may generate more noise	Offers a more controlled flexible element for high-performance machinery
T20 snake spring coupling	Metal elastic flexibility, damping, and high-speed transmission capability	Requires correct sizing, alignment, guarding, and spring inspection	Balances durability, flexibility, shock absorption, and industrial versatility

Compared with rigid couplings, the T20 is more forgiving of real-world alignment conditions. Compared with many elastomeric couplings, its metal spring can provide better resistance to high temperature and repeated mechanical loading. Compared with gear couplings, it may simplify maintenance in installations where regular lubrication is undesirable. Compared with chain couplings, the T20 is better suited to applications where controlled dynamic behavior and compact integration are priorities.

These comparisons are general rather than absolute. Selection must consider the specific load, speed, temperature, environment, duty cycle, shaft dimensions, and permissible misalignment. In some applications, a different coupling type may be the better choice. The principal benefit of the T20 is its balanced performance across several important requirements rather than reliance on only one characteristic.

Torque Transmission and Torsional Behavior

A coupling must transmit the required torque continuously and during transient events. Continuous torque is the torque required during normal operation. Peak torque may occur during starting, acceleration, emergency stopping, process changes, or temporary overload. A suitable coupling must be selected with appropriate service factors so that the spring and hubs are not overstressed.

The T20’s spring provides torsional compliance. This means that a small amount of angular deflection can occur between the driving and driven hubs as torque is applied. That deflection allows the coupling to absorb part of a torque fluctuation instead of transferring it immediately as a sharp impact.

Torsional compliance must be carefully balanced. Excessive flexibility can produce unwanted oscillation or excessive angular movement, while excessive stiffness can increase shock transmission. The correct balance depends on the motor characteristics, driven machine inertia, system speed, starting method, and operating cycle.

For a new installation, engineers should evaluate both nominal torque and peak torque. The basic torque relationship can be expressed as:

T = 9550P/n

In this relationship, T is torque in newton-metres, P is power in kilowatts, and n is rotational speed in revolutions per minute. This formula provides an initial estimate for steady operating torque. It does not replace a full coupling selection calculation because service factors, starting conditions, torsional vibration, and misalignment must also be considered.

For variable-speed systems, the entire speed range should be reviewed. A coupling that performs well at one speed may encounter a torsional resonance or critical-speed concern at another. High-speed applications require particular attention to balance, runout, installation accuracy, and the relationship between coupling stiffness and the natural frequency of the drivetrain.

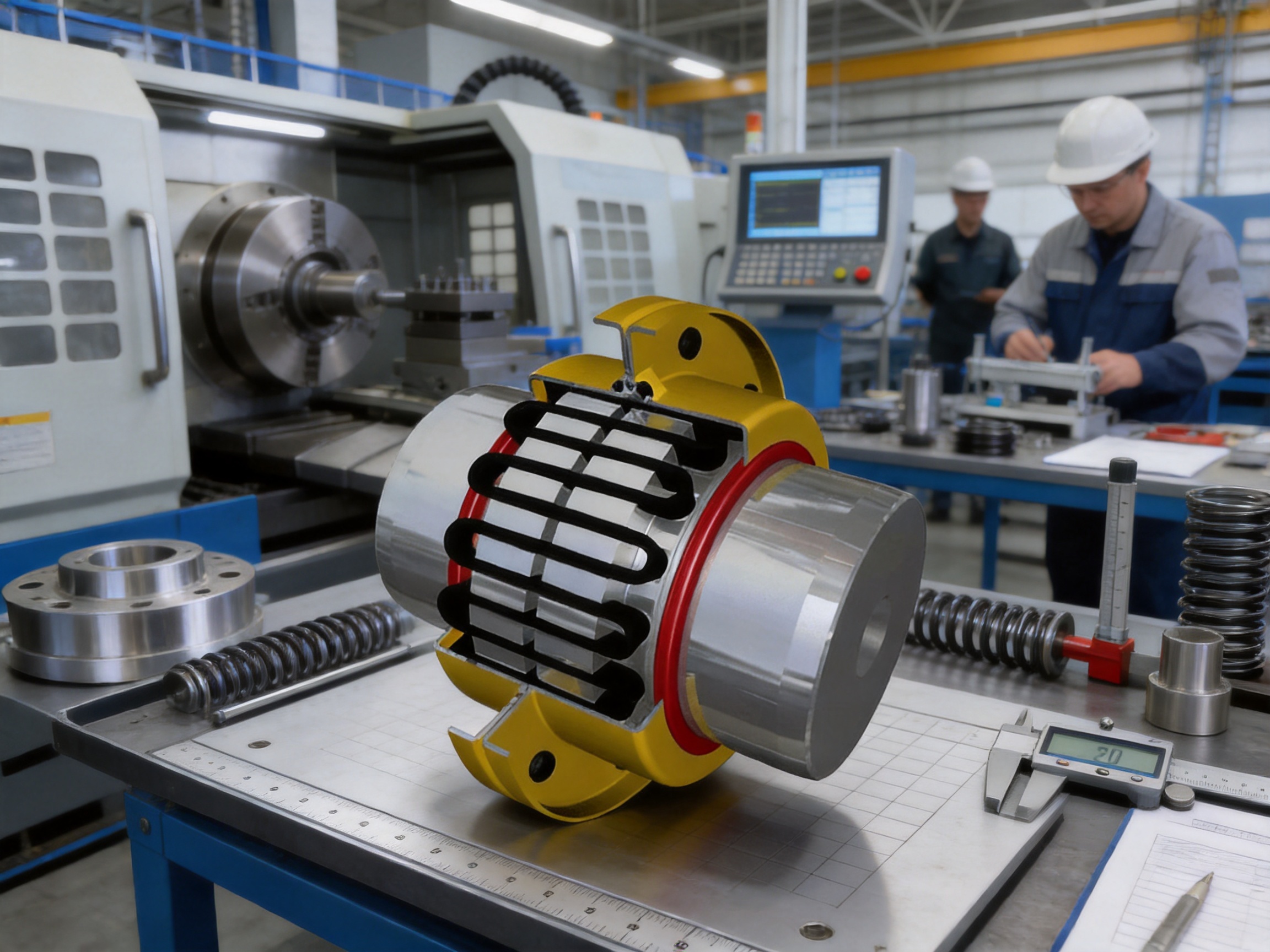

Manufacturing Quality and Engineering Control

The performance of a snake spring coupling depends not only on its design but also on the accuracy and consistency of its manufacture. Small variations in spring geometry, hub tooth spacing, material properties, or balance can influence vibration, load distribution, and service life. For this reason, the T20 should be produced through controlled engineering and inspection procedures rather than treated as a simple fabricated component.

Material Selection

The spring material must provide a suitable combination of strength, elasticity, fatigue resistance, and environmental stability. The hub material must withstand transmitted torque, tooth contact pressure, keyway stress, and repeated operating loads. Material selection should also consider temperature, corrosive exposure, lubrication conditions, and the possibility of shock loading.

Reliable production begins with controlled raw materials and traceable procurement. Material certificates, incoming inspection, hardness verification, and dimensional checks help ensure that the starting components meet the intended requirements. Where required, heat treatment and surface treatment can improve wear resistance and structural performance.

Precision Machining

The coupling hubs must be machined accurately so that the spring engages consistently around the circumference. Important features include bore dimensions, keyways, tooth geometry, face runout, concentricity, and overall axial dimensions. Precision machining reduces uneven contact and helps the coupling rotate smoothly.

Modern production equipment can support repeatable machining of different coupling sizes and customized configurations. Computer-controlled processes, appropriate cutting tools, in-process inspection, and final dimensional verification all contribute to consistent product quality. A professional manufacturer also maintains process records so that production deviations can be identified and corrected.

Spring Forming and Stress Control

The snake spring must be formed to a precise wave pattern. The forming process should control the spring’s pitch, curvature, thickness, and contact profile. If the geometry is inconsistent, some portions of the spring may carry more load than others, causing uneven wear or localized stress.

After forming, the spring may require stress-relief treatment or other controlled processing. These steps help stabilize the material and reduce the risk of premature fatigue. Inspection should include dimensional checks and, where appropriate, surface examination for cracks, laps, or other defects.

Assembly and Inspection

Assembly quality affects the coupling’s behavior in service. The spring, hubs, fasteners, covers, and any retaining components must be installed according to the intended design. Incorrect assembly can produce excessive clearance, interference, uneven engagement, or inadequate protection.

Final inspection may include dimensional verification, visual inspection, balance checks, test fitting, and functional evaluation. Depending on the product configuration and customer requirements, the manufacturer can also provide technical documentation related to materials, dimensions, tolerances, installation, and maintenance.

Manufacturing Strengths of Zhongye Heavy Industry Technology

Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. integrates research and development, manufacturing, and sales. Its location in Zhenjiang, Jiangsu Province, places the company within an established industrial region with access to engineering resources, transportation, and manufacturing infrastructure.

The company operates a new workshop covering approximately 16,463.52 square metres. This facility includes a heavy workshop of about 5,500 square metres, a precision workshop of approximately 4,600 square metres, office and technical areas, a warehouse, a dining facility, and supporting roads, landscaping, and parking areas. The separation of heavy and precision production areas supports the manufacturing of both large industrial coupling components and accurately machined parts.

A heavy workshop is valuable for handling large shafts, hubs, housings, and other components used in industrial transmission systems. A precision workshop supports machining and inspection where closer control of dimensions, concentricity, tooth geometry, and surface quality is required. Together, these capabilities allow the company to manage a broad range of coupling products and sizes.

Zhongye’s product portfolio includes toothed couplings, elastic sleeve pin couplings, elastic pin couplings, gear couplings with elastic pins, universal couplings, tire couplings, jaw couplings, star couplings, diaphragm couplings, drum couplings, grid couplings, Oldham couplings, flange couplings, clip shell couplings, GL-type roller chain couplings, safety couplings, and customized non-standard couplings.

This broad product experience is an advantage when selecting a coupling for a complex drivetrain. Instead of recommending one coupling type for every situation, an experienced manufacturer can compare different designs and identify the most appropriate balance of torque, speed, flexibility, protection, and maintenance. The T20 is therefore supported by knowledge across multiple categories of flexible and rigid power transmission products.

The company emphasizes research and development, technical support, quality control, testing facilities, customization, and after-sales service. Its stated quality management approach includes compliance with international standards and certifications such as ISO 9001. These systems help establish repeatable procedures for design review, purchasing, machining, assembly, inspection, and customer communication.

For customers with unusual shaft dimensions, restricted installation space, special environmental requirements, or non-standard operating conditions, Zhongye can also undertake customized coupling design and manufacture. Customization may involve bore dimensions, keyways, flange arrangements, protective covers, materials, surface treatments, balancing requirements, or connection details. All modifications should be validated against the actual operating conditions rather than made solely for dimensional convenience.

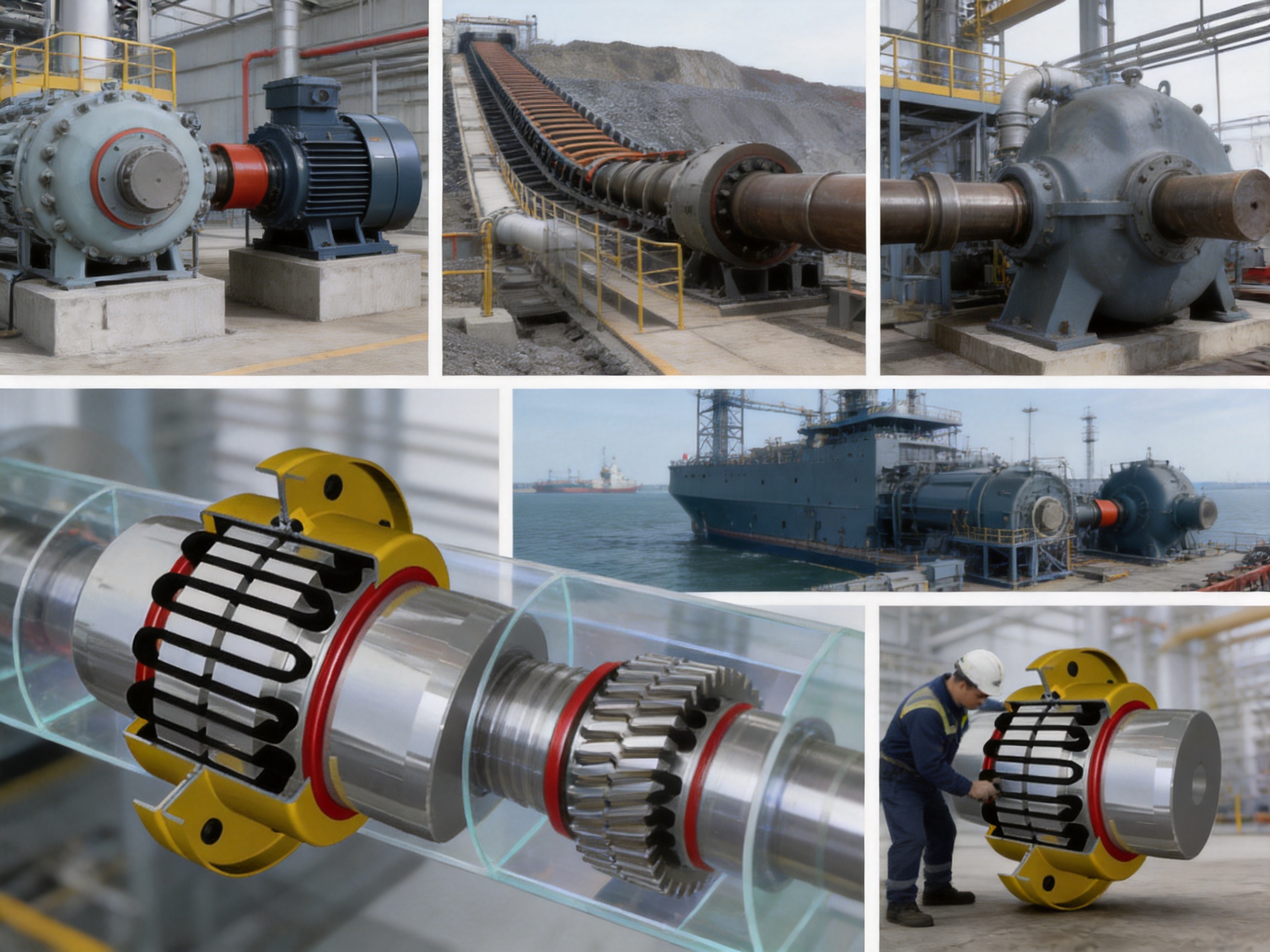

Application Areas

Pumps

Pump systems can experience fluctuating loads, frequent starts, pipe-induced forces, and seal sensitivity. A flexible coupling can help isolate the motor from some of the pump’s vibration and accommodate limited shaft movement. The T20 may be considered for water equipment, process pumps, cooling systems, industrial circulation systems, and other pump-driven machinery when its speed and torque ratings are suitable.

Correct pump alignment remains important. Pipework should be independently supported so that external nozzle loads are not transferred into the pump and coupling. After installation, alignment should be checked with the connected equipment in its normal operating condition whenever practical.

Compressors

Compressors often operate continuously and may impose cyclic or pulsating torque on the drivetrain. High rotational speed, elevated temperature, and the need for dependable operation make coupling selection particularly important. The T20’s metal spring can provide torsional flexibility while maintaining a compact mechanical connection.

For compressor service, engineers should examine starting torque, gas process conditions, speed range, torsional vibration, and shutdown events. If the compressor has strong pulsation or unusual torsional behavior, a detailed dynamic analysis may be required before final coupling selection.

Metallurgical Equipment

Metallurgical equipment frequently operates in harsh environments with dust, heat, shock loads, and heavy-duty cycles. Rolling mills, conveyors, feeders, fans, and auxiliary drives can all place severe demands on couplings. The T20’s metal elastic element and robust construction can be useful where resistance to repeated mechanical loading is required.

Protective guarding and environmental sealing should be considered carefully in steelmaking and related applications. Contamination can accelerate wear at contact surfaces, so the coupling should be protected from scale, abrasive dust, water spray, and accidental impact.

Mining Equipment

Mining machinery may be exposed to high loads, uneven feed conditions, dust, impact, and difficult maintenance access. Flexible couplings are often used in crushers, conveyors, pumps, fans, and material-handling systems. The T20 can help manage load variation and misalignment, but selection should include the highest expected shock load rather than only the average motor output.

Maintenance teams should establish inspection intervals based on operating hours, load severity, contamination, and accessibility. A coupling that is installed in a clean indoor environment may require a different maintenance schedule from one used in a dusty outdoor mine.

Lifting and Port Equipment

Lifting equipment, cranes, winches, hoists, and port machinery may undergo frequent starts, stops, reversals, and load changes. These transient conditions can produce significant torsional shocks. A flexible metal spring coupling can help moderate these events and protect the motor and gearbox from sudden torque transfer.

Safety is especially important in lifting applications. Coupling selection must consider rated load, braking conditions, emergency stops, duty classification, and applicable local safety requirements. The coupling should be correctly guarded and inspected as part of the complete lifting system.

Paper Machinery

Paper equipment typically demands continuous operation, stable speed, low vibration, and accurate power transmission. Production interruptions can be costly, so coupling reliability and predictable maintenance are important. The T20 can support smooth transmission in selected paper-processing drives, especially where the system benefits from metal-element durability and torsional damping.

Marine Propulsion and Auxiliary Drives

Marine machinery may experience vibration, variable loads, limited installation space, and challenging access. Couplings used in propulsion auxiliaries, pumps, compressors, generators, and other shipboard systems must be selected with attention to corrosion, temperature, alignment, and classification requirements.

The T20 may be suitable for marine applications when the materials, protective finish, balance, and operating ratings meet the relevant project requirements. For propulsion systems, a complete torsional vibration assessment and applicable marine approval review should be conducted before installation.

Aerospace and Specialized Equipment

High-speed aerospace and specialized equipment requires strict control of weight, balance, temperature, fatigue, and reliability. The T20 concept provides a metal elastic transmission solution, but aerospace applications may require special materials, qualification testing, traceability, balancing, documentation, and certification beyond standard industrial requirements.

In such cases, the manufacturer and equipment designer should define all performance criteria in advance. The coupling should be evaluated as part of the complete system rather than selected only from a general catalogue rating.

Engineering Selection Guidelines

Correct selection begins with a complete operating profile. The required information should include the power rating, operating speed, starting method, continuous torque, peak torque, duty cycle, shaft diameters, bore and keyway requirements, shaft extension, available space, ambient temperature, contamination, and expected misalignment.

Selection parameter	Why it matters	Information to provide
Power and speed	Determines basic transmitted torque and dynamic behavior	Motor power, rated speed, minimum speed, maximum speed
Continuous torque	Defines the normal load carried by the spring and hubs	Steady operating torque or power and speed
Peak torque	Prevents overload during starting, stopping, and process changes	Starting torque, stall torque, impact load, braking torque
Misalignment	Determines whether the coupling can operate without excessive stress	Angular, parallel, and axial movement
Environment	Affects material, protection, corrosion resistance, and maintenance	Temperature, dust, water, oil, chemicals, outdoor or indoor location
Installation space	Controls coupling dimensions and service accessibility	Maximum outside diameter, length, guard size, shaft spacing
Connection details	Ensures compatibility with both shafts	Shaft diameter, keyway, spline, flange, bore tolerance
Dynamic requirements	Important for high-speed and variable-speed machinery	Balance grade, torsional analysis, critical speeds, vibration limits

Once these details are available, the coupling size can be selected by comparing the calculated torque with the allowable torque after applying an appropriate service factor. Speed rating must also be checked independently. A coupling that has adequate torque capacity may still be unsuitable if its permissible speed is exceeded.

The shaft and bore connection deserves special attention. A properly sized coupling must fit both shafts with suitable clearance or interference conditions according to the design. Keyways must have the correct dimensions and finish, and set screws or other locking arrangements must be installed correctly. Inadequate shaft engagement can produce fretting, key failure, or local stress concentration.

For systems with large inertia, frequent reversals, or significant cyclic loading, a torsional vibration review is recommended. The flexible coupling changes the torsional stiffness of the drivetrain, which can alter the system’s natural frequencies. The final selection should therefore consider the motor, coupling, gearbox, driven machine, shafts, and other rotating masses as one mechanical system.

Installation Best Practices

Before installation, inspect the coupling for shipping damage, corrosion, contamination, and missing components. Confirm that the model, size, bore, keyway, and accessories match the equipment drawing. The shaft ends should be clean, free of burrs, and checked for damage. Do not force the hubs onto the shafts with uncontrolled hammering because impact can damage bearings or distort precision surfaces.

Measure shaft diameters, key dimensions, shaft separation, and hub seating positions. Verify that the shaft extensions provide adequate engagement without causing the hubs to interfere with shoulders, seals, or bearing housings. The coupling should be installed with the correct axial position so that the spring has the intended operating clearance.

Alignment should be carried out using a suitable method, such as dial indicators, laser alignment tools, or precision straightedge and feeler gauges where appropriate. Angular and parallel alignment should both be checked. Alignment should be repeated after tightening the foundation bolts because tightening can shift the motor or driven machine.

Fasteners should be tightened to the specified torque using calibrated tools. Thread engagement, locking devices, and bolt grades should match the manufacturer’s instructions. The spring element should be installed without twisting, bending, or forcing it beyond its intended position.

After installation, rotate the assembly by hand when safe and practical to confirm that there is no binding or interference. Install the coupling guard before operation. During the initial run, observe vibration, noise, temperature, and abnormal movement. Stop the equipment immediately if there is unusual contact, spring displacement, rapid heating, or excessive vibration.

Maintenance and Service Life

The T20 is designed for durability, but no coupling is maintenance-free in every application. Routine inspection helps identify wear or alignment problems before they cause an unplanned shutdown. Inspection intervals should be based on operating hours, speed, load variation, environment, and the consequences of failure.

During inspection, look for broken or distorted spring sections, unusual polishing or wear marks, corrosion, loose fasteners, fretting around the hubs, keyway damage, excessive backlash, and contact between the coupling and guard. Check for changes in vibration or noise because these may indicate misalignment, imbalance, overload, or spring deterioration.

Metal spring couplings generally do not rely on rubber elements that must be replaced because of ordinary aging. Nevertheless, the spring can experience fatigue if the coupling is overloaded, operated with excessive misalignment, exposed to corrosive substances, or subjected to repeated shock beyond its design rating. A spring with cracks, permanent deformation, severe wear, or significant corrosion should be replaced.

Maintenance personnel should not modify the spring, enlarge the bore, remove protective components, or substitute non-approved fasteners without technical review. Such changes can affect balance, torque capacity, clearances, and safety. Replacement components should be identified by coupling size and configuration, not only by visual similarity.

Where a coupling operates at high speed, inspection should also include balance-related symptoms. New vibration after maintenance may indicate incorrect assembly orientation, uneven spring installation, damaged hubs, contamination, or shaft misalignment. If vibration persists, the complete rotating assembly should be evaluated by qualified personnel.

Customization for Non-Standard Machinery

Standard coupling sizes are suitable for many applications, but industrial machinery often has special requirements. These may include unusual shaft diameters, large shaft spacing, restricted radial clearance, special flange dimensions, custom keyways, alternative materials, corrosion-resistant finishes, or unique protective arrangements.

Zhongye supports the design and manufacture of non-standard couplings. A customized T20 configuration can be developed around the actual machine interface and operating conditions. The design process should begin with engineering information rather than a simple dimensional request. Power, speed, torque, misalignment, environmental conditions, and installation constraints all affect the correct design.

For a custom project, customers should provide equipment drawings, shaft details, operating data, load cycles, temperature range, environmental information, and applicable standards. The manufacturer can then review the connection arrangement, spring size, hub geometry, material selection, balance requirements, and protective cover design.

Customization can provide a better fit than adapting a standard product to an unsuitable installation. It may reduce the need for additional adapters, simplify assembly, improve shaft engagement, and make inspection easier. At the same time, custom designs should pass appropriate design verification and inspection before being placed into critical service.

Quality Assurance and Customer Support

Quality assurance is not limited to the final visual appearance of a coupling. It includes design control, material control, machining accuracy, spring forming, heat treatment, assembly, inspection, packaging, and technical communication. Each stage can influence the product’s performance in service.

A manufacturer with research and development capability can evaluate coupling behavior more effectively when customers present unusual operating conditions. Manufacturing capability allows the approved design to be converted into consistent components. Testing facilities provide an additional means of verifying dimensions, balance, materials, and functional quality.

Zhongye’s integrated business model combines technical development, production, sales, and after-sales support. This can simplify communication for customers who need product selection assistance, drawing confirmation, customized design, replacement parts, or troubleshooting support. Pre-sale technical support is especially useful when a coupling is being considered for a new machine or a major retrofit.

After-sales support should include installation guidance, maintenance recommendations, replacement identification, and response to operating questions. Clear documentation helps the customer establish correct procedures and reduces the risk of installation-related failure.

International customers may also require export packaging, product identification, inspection records, material documentation, and compliance information. These requirements should be discussed during the quotation and engineering stages so that the delivered coupling matches the project’s documentation and quality expectations.

Safety Considerations

A rotating coupling stores and transmits significant mechanical energy. The T20 must always be covered by a suitable guard that prevents accidental contact with the spring, hubs, fasteners, and rotating shafts. The guard must be strong enough to contain loose components in the event of a mechanical failure and must not contact the coupling during operation.

All installation and maintenance work should be performed with the equipment isolated, locked out, and verified to be incapable of starting. Stored energy, gravity, pressure, and connected machinery movement must be controlled. Personnel should use appropriate protective equipment and follow the safety procedures applicable to the site.

Operating limits should never be exceeded. Excessive speed, torque, misalignment, temperature, or contamination can reduce service life and create a safety risk. If the coupling shows severe vibration, repeated spring breakage, overheating, or unexplained movement, the machine should be stopped and inspected.

Safety coupling requirements may differ from ordinary flexible coupling requirements. If the application requires overload release, torque limiting, or emergency disconnection, the customer should confirm whether a dedicated safety coupling is more appropriate than a standard T20 arrangement.

Why Choose the T20 for Competitive Industrial Applications?

The T20’s competitive value comes from the way several functions are combined in one coupling. It transmits torque through a strong metal spring, compensates for practical shaft movement, reduces shock transmission, supports high-speed operation, and can be adapted to a wide range of industrial equipment.

Its metal elastic element is a major advantage in environments where heat, continuous duty, oil exposure, and mechanical fatigue may challenge polymeric elements. Its serpentine shape distributes engagement around the coupling and provides progressive torsional flexibility. Its compact structure helps equipment designers manage limited installation space.

The product is also supported by a manufacturer with experience across many coupling categories. Zhongye’s broad product range, precision workshop, heavy workshop, research and development team, testing capabilities, quality management, and customization services provide a foundation for consistent industrial supply.

Rather than focusing only on a catalogue price, buyers should evaluate total operating value. A coupling that reduces vibration, protects bearings, simplifies maintenance, and lasts longer may provide greater value over the equipment lifecycle. Product selection, installation quality, operating discipline, and maintenance all contribute to that value.

Frequently Asked Questions

What type of coupling is the T20?

The T20 is a flexible coupling with a metal elastic element. It uses a serpentine metal spring installed between the teeth of two hubs to transmit torque while providing controlled flexibility and damping.

What misalignment can the T20 compensate for?

The T20 is designed to compensate for angular, parallel, and limited axial misalignment within its specified operating limits. The exact permissible values depend on the coupling size and configuration. Alignment should still be performed carefully because excessive misalignment can overload the spring.

Is the T20 suitable for high-speed machinery?

Yes, the T20 is intended for high-speed transmission applications when the selected size, balance quality, torque rating, and speed rating match the equipment requirements. A high-speed installation should also be reviewed for torsional vibration, critical speeds, runout, and correct assembly.

How is the T20 different from an elastomeric coupling?

The T20 uses a metal spring rather than a rubber or polymer element. This can provide stronger resistance to temperature, fatigue, and certain industrial environments. Elastomeric couplings may provide different damping characteristics and may be preferable in some applications, so the final choice should be based on the complete operating profile.

Does the T20 require lubrication?

Lubrication requirements depend on the specific design and configuration. Customers should follow the manufacturer’s installation and maintenance instructions rather than assume that all spring couplings have identical requirements. The coupling should also be protected from contamination and inspected regularly.

Can the T20 be customized?

Customized versions may be developed for special shaft diameters, keyways, flange arrangements, dimensions, materials, protective covers, or environmental requirements. Technical data and equipment drawings should be submitted for engineering review before production.

What information is needed for coupling selection?

Important information includes power, speed, continuous torque, peak torque, starting and stopping conditions, shaft diameters, keyways, shaft separation, expected misalignment, ambient temperature, contamination, available space, duty cycle, and any balance or certification requirements.

How can coupling life be extended?

Correct sizing, accurate alignment, proper installation, effective guarding, periodic inspection, protection from contamination, and operation within the rated limits all help extend service life. Any unusual vibration, noise, wear, or spring deformation should be investigated promptly.

Can the T20 be used in pumps and compressors?

Yes, the T20 can be considered for pumps, compressors, and similar rotating equipment when its ratings match the application. Engineers should review the starting torque, operating speed, process conditions, alignment movement, and torsional characteristics of the complete drivetrain.

What support is available from the manufacturer?

Zhongye provides product selection assistance, technical consultation, customized coupling design, manufacturing, quality control, pre-sale support, and after-sale service. Customers can contact the company to confirm product dimensions, operating suitability, documentation, and replacement requirements.

Conclusion

The T20 high-speed snake spring coupling is a practical solution for demanding power transmission systems that require more flexibility than a rigid coupling and more temperature and fatigue resistance than many non-metallic elastic designs can provide. Its serpentine metal spring transmits torque smoothly, absorbs shock, reduces torsional vibration, and compensates for limited shaft misalignment.

Its advantages are especially relevant to pumps, compressors, metallurgical equipment, mining machinery, water equipment, lifting systems, paper machinery, port equipment, marine auxiliaries, and other industrial drives. The product’s performance depends on correct sizing and installation, but its design provides a strong foundation for reliable, compact, and efficient mechanical transmission.

Zhongye Heavy Industry Technology supports the T20 with integrated research and development, heavy and precision manufacturing facilities, quality management, inspection capabilities, a broad coupling product portfolio, and customized engineering services. This combination enables the company to supply both standard and non-standard coupling solutions for customers with varied technical requirements.

For a new installation or replacement project, the best approach is to evaluate the complete machine system, including torque, speed, alignment, temperature, environment, torsional behavior, and maintenance expectations. When properly selected and maintained, the T20 can help improve drivetrain stability, reduce mechanical stress, and support longer service life for connected equipment.

References

1. American Gear Manufacturers Association, guidance on flexible coupling selection, rating, and application engineering.

2. International Organization for Standardization, ISO 9001, Quality Management Systems — Requirements.

3. International Organization for Standardization, ISO 20816 series, Mechanical Vibration — Measurement and Evaluation of Machine Vibration.

4. American Petroleum Institute, recommended practices for coupling application in rotating equipment.

5. Machinery’s Handbook, engineering principles for shafts, keys, torque transmission, fits, and rotating machinery.

6. Manufacturer technical materials for the T20 high-speed snake spring coupling and related industrial coupling products.

7. Zhongye Heavy Industry Technology product engineering and manufacturing information for flexible, rigid, safety, and customized couplings.
