GBD Motor Shaft Extension Drum Gear Coupling: Design, Performance, Applications, and Selection Guide

The GBD motor shaft extension drum gear coupling is a heavy-duty power transmission component designed to connect a motor shaft with driven machinery while accommodating the alignment variations that naturally occur in industrial equipment. Manufactured in accordance with the Q/YG 11003X-2018 enterprise standard, the GBD series combines high torque capacity, compact construction, broad bore options, high permissible speed, and dependable operation in demanding mechanical systems.

Unlike rigid couplings, which require highly accurate shaft alignment, the GBD coupling uses a drum-gear arrangement to transmit torque while compensating for axial, radial, and angular shaft displacement. This makes it especially suitable for equipment exposed to heavy loads, vibration, shock, thermal expansion, foundation movement, or repeated starting and stopping. Typical installations include metallurgical machinery, mining equipment, lifting systems, port machinery, hydraulic equipment, paper machinery, and other industrial drive systems.

The series includes ten principal sizes, from GBD1 through GBD10. Nominal torque ranges from 1.6 kN·m to 56 kN·m, while allowable speed ranges from 2,450 r/min to 5,600 r/min depending on the model. Bore diameters are available from 22 mm to 200 mm, with several shaft-hole configurations to support different motor and driven-shaft arrangements.

This article examines the engineering principles, technical characteristics, manufacturing strengths, selection considerations, installation practices, maintenance requirements, and application advantages of the GBD motor shaft extension drum gear coupling.

GBD Motor shaft extension drum gear coupling(Q/YG 11003X-2018)

1. Role of a Drum Gear Coupling in Industrial Transmission

A coupling is installed between two shafts to transmit torque from a driving machine to a driven machine. In a typical industrial arrangement, an electric motor, hydraulic motor, gearbox, or turbine supplies rotational power, while a pump, conveyor, rolling mill, hoist, winch, fan, compressor, or other machine consumes that power. The coupling must transfer the required torque without excessive vibration, overheating, noise, or premature wear.

In practical installations, the two shafts are rarely perfectly aligned throughout the entire operating cycle. Alignment can change because of manufacturing tolerances, foundation settlement, bearing clearance, thermal growth, elastic deflection, installation error, and load-related movement. A coupling that cannot accommodate these changes may impose additional forces on shafts and bearings. Such forces can produce gear wear, bearing damage, seal failure, vibration, and unplanned downtime.

The GBD series addresses this challenge through a drum-gear structure. The external gear teeth and internal gear teeth engage over a controlled contact area. The geometry permits the coupling to transmit substantial torque while allowing limited relative movement between the connected shafts. The result is a flexible mechanical connection with the strength and durability required for heavy industrial service.

The motor shaft extension configuration is particularly useful where the motor shaft and the driven machine are arranged in a compact axial layout. It can simplify the connection between a motor and a gearbox, drum, lifting mechanism, or other driven unit. The coupling body is engineered to provide an efficient transfer path while maintaining a relatively compact envelope in relation to its torque rating.

2. Product Construction and Operating Principle

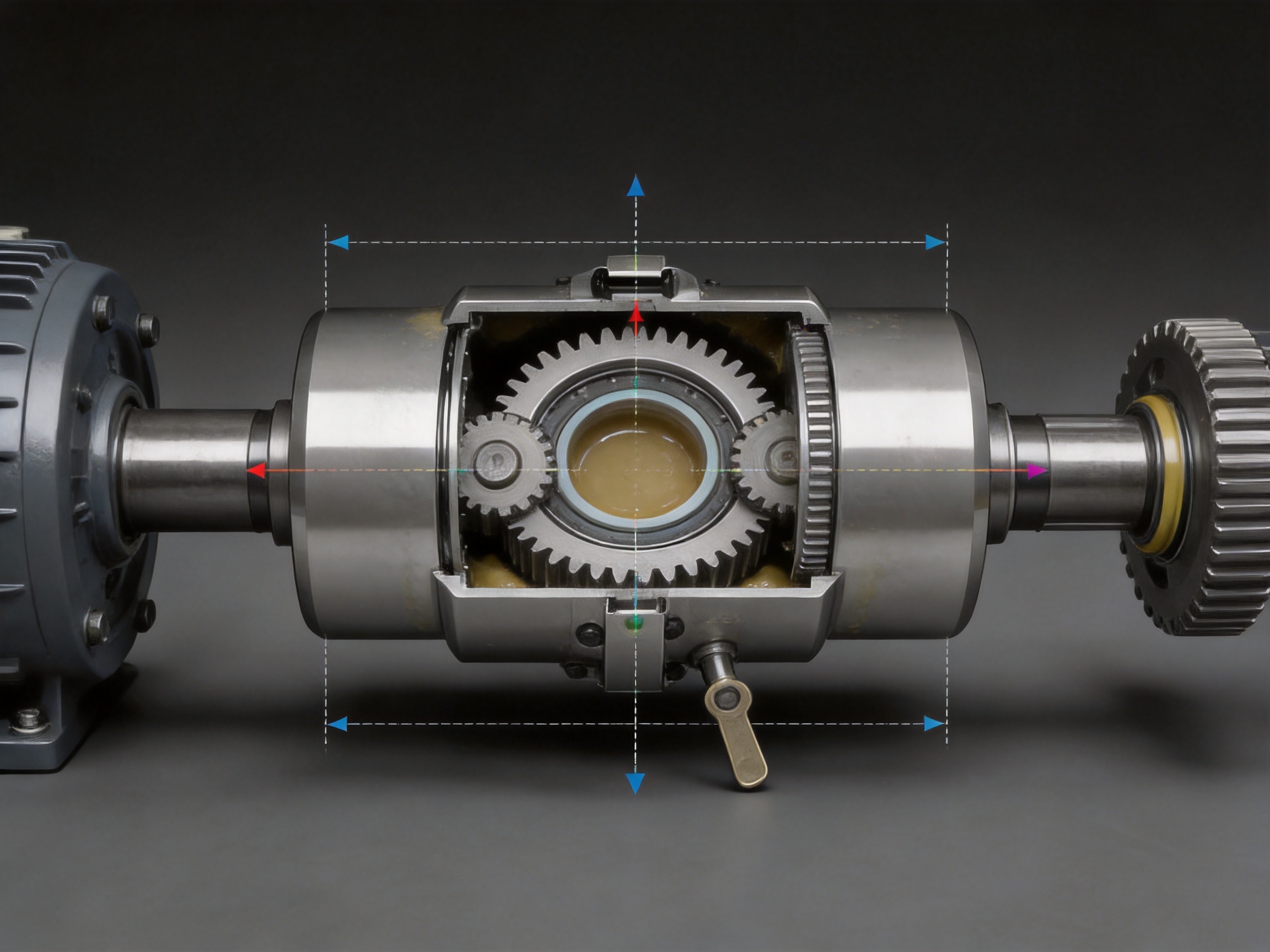

2.1 Drum-gear transmission mechanism

The central operating element of the GBD coupling is the drum-gear mechanism. The coupling typically consists of gear components mounted on the respective shafts and an outer sleeve that engages with the gear teeth. The outer sleeve is secured to the internal gear assembly by bolts, creating a mechanically robust enclosure around the torque-transmitting elements.

When the motor rotates, torque passes from the motor shaft through the gear hub, across the meshing gear teeth, and into the opposite hub and driven shaft. Because the gear teeth are designed with a crowned or drum-like profile, the contact pattern can remain effective when the shafts experience a limited angular or radial offset. This is the principal difference between a drum gear coupling and a simple rigid flange connection.

The gear-tooth contact must be supported by suitable lubrication. Grease reduces friction, limits wear, helps dissipate heat, and protects the tooth surfaces from corrosion. The GBD design includes an internal lubricant reservoir. The required grease quantity depends on the coupling size, ranging from approximately 107 mL for the smallest listed configuration to approximately 1,320 mL for the largest configuration.

2.2 Compensation of shaft misalignment

Three principal types of misalignment may occur in a drive system:

Axial misalignment refers to movement along the shaft centerline. This can result from thermal expansion, thrust movement, bearing clearance, or changes in the installed position of the connected equipment.

Radial or parallel misalignment occurs when the two shaft centerlines are parallel but offset from one another. It can be caused by installation tolerances, foundation movement, or deflection of the machine frame.

Angular misalignment occurs when the two shaft centerlines intersect at an angle rather than remaining collinear. It may result from uneven mounting surfaces, shaft deflection, or incorrect installation.

The GBD coupling is designed to compensate for these forms of displacement within its permitted operating limits. Compensation does not eliminate the need for accurate alignment. Instead, it provides a controlled allowance that reduces the harmful forces generated by unavoidable movement. Proper initial alignment remains essential for long service life.

2.3 Vibration and shock response

Many industrial machines do not operate under perfectly constant torque. Hoists, conveyors, rolling equipment, crushers, mills, and starting systems may produce fluctuating loads, impact loads, or short-duration torque peaks. A rigid connection transfers these disturbances directly through the shaft line. A drum gear coupling can reduce the transmission of certain mechanical disturbances by allowing controlled movement within the gear engagement.

The coupling is not an elastomeric vibration isolator, and it should not be selected as a substitute for a highly damped flexible coupling when significant torsional vibration absorption is required. Nevertheless, its flexible gear engagement and robust structure can improve the stability of a power transmission system compared with an entirely rigid connection. Correct sizing, lubrication, alignment, and torsional analysis are still required for applications with severe shock or cyclic loading.

3. Principal Technical Advantages

3.1 High torque capacity in a compact form

The GBD series provides nominal torque ratings from 1.6 kN·m for GBD1 to 56 kN·m for GBD10. This broad range allows the same general coupling concept to serve both relatively small industrial drives and larger heavy-duty systems. The gear transmission path makes efficient use of the available radial space, allowing substantial torque to be transferred without requiring an unnecessarily large external structure.

A compact coupling can provide several system-level benefits. It may reduce the required machine footprint, simplify guarding, decrease the weight supported by the shaft arrangement, and make replacement easier in confined installations. Compactness also helps designers integrate the coupling into motor, gearbox, drum, and brake assemblies.

3.2 Broad operating-speed range

The allowable speed of the series depends on the model. The smallest model, GBD1, is rated for up to 5,600 r/min, while the largest listed model, GBD10, is rated for up to 2,450 r/min. The speed range reflects the relationship between coupling size, rotating mass, balance, tooth geometry, and mechanical loading.

For high-speed applications, the actual operating speed must remain within the specified allowable value, and the complete installation should be evaluated for balance, shaft runout, bearing condition, and resonance. High-speed operation also increases the importance of correct grease selection and proper sealing. A coupling should never be selected based on torque alone when speed is significant.

3.3 Extensive bore selection

The available shaft-hole diameters extend from 22 mm to 200 mm. Depending on model and configuration, shaft-hole options include types identified as Y, J1, and Z1, as well as the listed d1, d2, and dz dimensions. This range allows the coupling to be matched with motors, gearboxes, drums, drive shafts, and other rotating equipment with different shaft diameters and mounting requirements.

In addition to selecting the correct bore diameter, engineers must verify shaft-hole length, keyway dimensions, interference or clearance requirements, shaft extension length, shoulder locations, retaining arrangements, and the available axial space. The bore must provide adequate engagement length and must not interfere with shaft fillets, seals, bearing housings, or adjacent components.

3.4 Resistance to heavy industrial conditions

Metallurgical, mining, lifting, hydraulic, paper, and port equipment can expose couplings to dust, water, impact, temperature variation, vibration, and frequent load changes. A gear coupling with a high-strength metallic torque path is well suited to such environments when it is correctly protected and maintained.

The bolted outer sleeve and internal gear arrangement create a durable mechanical assembly. High-strength materials and controlled manufacturing processes help the coupling withstand the dynamic loads associated with industrial service. The precise material grade, heat treatment, surface condition, and inspection requirements should be confirmed for each project or purchase order, particularly where the coupling will operate under severe duty, low temperature, corrosive conditions, or high cycle frequency.

3.5 Maintainability and service access

Maintenance efficiency is a major factor in the total cost of ownership of industrial equipment. A coupling that is difficult to inspect or remove can increase downtime even if its nominal purchase price is low. The GBD design prioritizes a practical assembly arrangement in which the outer sleeve is bolted to the gear mechanism. This supports organized installation, removal, inspection, and servicing by qualified maintenance personnel.

Routine service generally involves checking for grease leakage, inspecting seals and bolts, observing tooth wear, verifying alignment, and replenishing or replacing lubricant at suitable intervals. Maintenance intervals should be established according to operating speed, load severity, environmental contamination, duty cycle, and the recommendations supplied for the specific model.

4. Model Range and Technical Parameters

The following table summarizes the principal model-level parameters provided for the GBD series. Bore options and mass may vary within each model according to the selected shaft-hole size. The listed values should be used for preliminary selection and verified against the final technical drawing and operating conditions.

Model	Nominal Torque Tn (kN·m)	Allowable Speed (r/min)	Representative Bore Range (mm)	Representative Shaft-Hole Length L (mm)	D (mm)	D1 (mm)	D2 (mm)	Grease Quantity (mL)	Mass Range (kg)
GBD1	1.6	5600	22–56	52–112	127	95	75–112	107	6.2–9.6
GBD2	2.8	5100	38–65	82–142	149	116	90–142	137	11.2–16.4
GBD3	4.5	4600	40–75	112–142	167	134	105–142	201	17.2–22.4
GBD4	6.3	4300	45–90	112–172	187	153	125–172	238	25.2–35.6
GBD5	8.0	4000	50–105	112–212	204	170	140–212	298	31.6–53.9
GBD6	11.2	3700	55–115	112–212	230	186	155–212	465	40.5–67.5
GBD7	18.0	3350	60–135	142–252	256	212	180–252	561	63.9–106.7
GBD8	25.0	3000	65–150	142–252	287	239	200–252	734	81.7–123
GBD9	36.1	2700	70–175	142–302	325	276	235–302	956	112–212
GBD10	56.0	2450	75–200	142–352	362	313	270–352	1320	161–319

The detailed dimensional table also provides values for C, C1, H, A, A1, B, B1, e, moment of inertia, grease quantity, and mass. These dimensions are important when checking installation clearance, coupling guards, shaft extension length, dynamic response, and lifting requirements. The moment of inertia increases with coupling size and should be included in motor acceleration calculations, braking calculations, and torsional system studies.

4.1 Understanding the dimensional designations

D generally represents a principal outside diameter, while D1 and D2 identify additional circular or gear-related dimensions used in the coupling drawing. C and C1 are axial or assembly-related dimensions. H, A, A1, B, and B1 describe additional radial or axial features. The exact interpretation must follow the official dimensional drawing for the selected configuration.

The dimension e and the moment of inertia are particularly relevant to dynamic analysis. A larger coupling usually has greater rotating mass, which can affect acceleration time, braking response, motor starting current, and torsional natural frequency. In high-cycle applications, the coupling should be evaluated as part of the entire rotating system rather than as an isolated component.

5. Advantages Compared with Alternative Coupling Types

5.1 Compared with rigid flange couplings

Rigid flange couplings can provide a direct and highly positive torque connection, but they place strict demands on shaft alignment. Any radial or angular error is transferred to the bearings and shafts. They are appropriate where shafts are permanently aligned and where no compensation is required.

The GBD drum gear coupling provides a more forgiving connection. Its ability to accommodate limited axial, radial, and angular displacement reduces the risk that ordinary operating movement will create excessive bearing loads. This makes it more suitable for large machines, long shaft lines, heavy frames, and equipment exposed to thermal or structural movement.

5.2 Compared with elastomeric couplings

Elastomeric couplings use a flexible non-metallic element to provide misalignment compensation and torsional damping. They can be beneficial where low noise, electrical isolation, or strong vibration damping is the primary requirement. However, the elastic element may be sensitive to temperature, oil, ultraviolet exposure, chemical attack, aging, and high shock loads.

The GBD coupling uses a metallic gear transmission system rather than a polymeric element. This gives it a high load-bearing capability and can provide long service in harsh industrial environments when lubrication and sealing are properly maintained. It is particularly attractive where torque density, speed, and heavy-duty durability are more important than maximum torsional damping.

5.3 Compared with chain and grid couplings

Chain couplings are relatively simple and can be economical, but they may generate more noise and require protection against contamination. Grid couplings use a spring-like metallic grid to absorb shock and provide flexibility, but the grid element is a wear component and may require replacement after severe service.

A drum gear coupling offers a more enclosed gear-based transmission path and a high torque capacity in relation to its size. Its service life is strongly dependent on grease condition, sealing, and tooth inspection. In applications where the coupling is exposed to severe impact or where high torque must be transmitted through a compact assembly, the GBD structure can be a strong alternative.

5.4 Compared with diaphragm couplings

Diaphragm couplings are valued for high speed, low backlash, no lubrication requirement, and accurate torque transmission. They are often used in turbines, compressors, pumps, and other precision systems. However, their operating limits can be affected by excessive misalignment, peak torque, reverse loading, and installation conditions.

The GBD coupling is oriented toward robust industrial service. It is lubricated and contains gear teeth, but it offers a strong mechanical connection for high-load applications such as lifting, metallurgy, mining, and port equipment. Selection should be based on the actual priorities of the machine: speed, maintenance philosophy, shock loading, alignment movement, torsional behavior, environmental conditions, and available space.

6. Application Areas

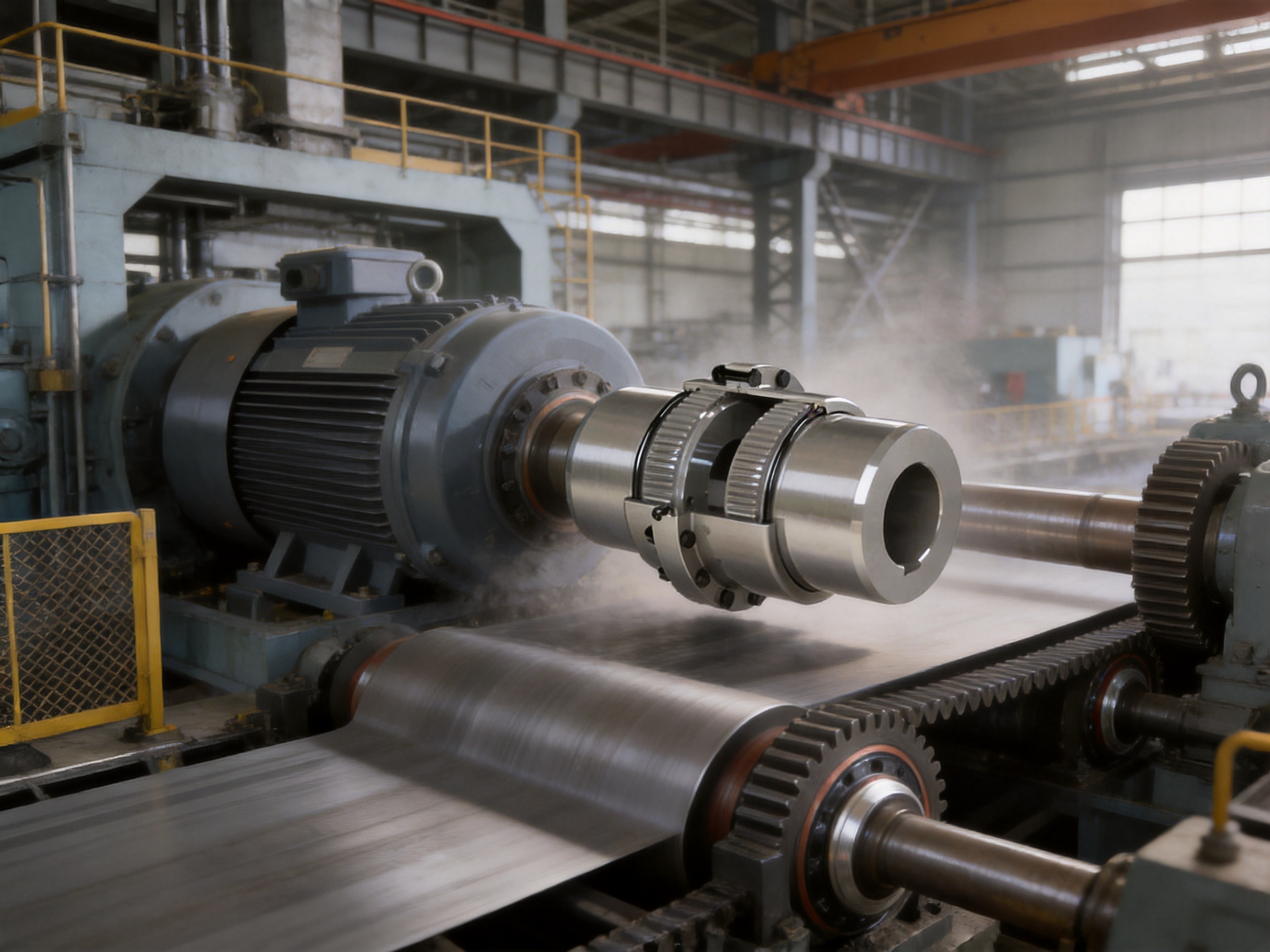

6.1 Metallurgical machinery

Steel plants and other metallurgical facilities contain rolling mills, conveyors, cooling beds, shears, winches, transfer systems, and auxiliary equipment. These machines often operate under high torque, repeated starts and stops, impact loads, and elevated temperatures. A correctly selected drum gear coupling can connect motors and gearboxes while accommodating movement caused by heat and structural deflection.

In rolling and conveying systems, coupling selection should consider peak rolling torque, reversing duty, acceleration time, braking, shaft diameter, and the possibility of contamination from scale, water, and lubricants. Protective guards and seals are essential, and the maintenance plan should include regular inspection of the gear-tooth contact pattern.

6.2 Mining equipment

Mining machinery frequently operates in dusty, humid, vibrating, and difficult-to-access environments. Crushers, feeders, conveyors, hoists, screens, pumps, and material-handling systems can impose substantial mechanical loads. The GBD series provides a metallic, high-capacity connection suitable for many of these drive systems.

For mining applications, the designer should apply appropriate service factors to account for impact and nonuniform loading. The selected coupling must also be protected from abrasive dust and water ingress. A coupling that is adequately sized for nominal motor torque may still be unsuitable if it cannot withstand starting torque, blocked equipment, frequent overload, or reversing operation.

6.3 Lifting and conveying machinery

Hoists, cranes, winches, elevators, port machinery, and conveyor drives require reliable torque transmission and controlled response during starting and stopping. Couplings in these systems may experience frequent load cycles, brake torque, acceleration shock, and changes in load direction.

The GBD coupling can be applied between motors, reducers, drums, and other drive elements when its torque, speed, bore, and misalignment ratings are suitable. For lifting systems, the complete drive must comply with applicable safety requirements. The coupling should not be treated as the only safety device unless a specific safety coupling or torque-limiting arrangement has been designed and certified for that purpose.

6.4 Hydraulic engineering equipment

Hydraulic gates, pumps, hoists, dredging equipment, and water-control machinery may operate outdoors and may be exposed to moisture, corrosion, and fluctuating loads. A gear coupling can help connect drive equipment while accommodating foundation or structural movement.

Environmental protection is particularly important in hydraulic engineering. The coupling housing, seals, fasteners, and lubricant must be selected and maintained for the expected water, humidity, temperature, and corrosion conditions. Regular inspection can prevent small seal defects from becoming major gear-tooth damage.

6.5 Paper machinery

Paper machines contain numerous rotating sections, including rolls, dryers, pumps, fans, and transmission assemblies. Some systems require high speed and stable operation, while others experience substantial torque and environmental humidity. The GBD series can be considered for appropriate heavy-duty sections where the required speed and alignment compensation fall within the product ratings.

High-speed paper machinery requires particular attention to balance, shaft alignment, lubrication, and vibration monitoring. The coupling should be installed with the correct balance condition and should not be modified in the field without engineering approval.

7. Coupling Selection Procedure

7.1 Determine the operating torque

The first step is to determine the actual transmitted torque. For a motor power rating P in kilowatts and speed n in revolutions per minute, approximate running torque can be calculated using:

T = 9550P/n

where T is expressed in newton-metres. The calculated running torque is only a starting point. The selected coupling must also account for starting torque, overload, acceleration, braking, reversing, duty cycle, and the characteristics of the driven machine.

A service factor should be applied according to the application. Heavy impact equipment, crushers, rolling mills, hoists, and machines with frequent starts generally require a higher service factor than smooth-running fans or centrifugal pumps. The final selection should ensure that the design torque remains below the coupling’s permissible rating under the actual operating conditions.

7.2 Check speed and dynamic conditions

The operating speed must not exceed the allowable speed for the selected GBD model. Where the speed is close to the rating, additional analysis is recommended. Important considerations include balance quality, shaft runout, bearing stiffness, coupling moment of inertia, torsional vibration, and critical speed.

High-speed installations should use suitable guards and should be commissioned carefully. Vibration measurements during initial operation can help identify misalignment, imbalance, loose fasteners, damaged bearings, or other problems before they become severe.

7.3 Match both shaft bores

The bore of each coupling half must match the corresponding shaft diameter and mounting configuration. The motor-side shaft and driven-side shaft may have different diameters, so the selected configuration must accommodate both. Shaft-hole length must also provide sufficient engagement without causing interference with shaft shoulders or internal coupling features.

Keyways, keys, retaining screws, shrink fits, and other shaft attachment methods must be designed according to the applicable mechanical requirements. The key and shaft must be capable of transmitting the required torque without excessive surface pressure or shear stress.

7.4 Verify allowable misalignment

The GBD coupling compensates for axial, radial, and angular misalignment, but the permitted values are limited. The actual installation should be aligned as accurately as practicable using dial indicators, laser alignment equipment, or other suitable instruments.

Misalignment values should be evaluated under both cold and operating conditions. For equipment with significant thermal growth, the cold alignment target may intentionally differ from the final operating alignment. This calculation should be carried out by the equipment designer or commissioning engineer.

7.5 Confirm space and installation access

The dimensions D, D1, D2, C, C1, H, A, A1, B, B1, and e should be checked against the machine layout. There must be enough space for the coupling, guard, grease service, bolt access, inspection, and removal.

Mass and moment of inertia should be considered when designing lifting arrangements and when checking the load on the motor or gearbox shaft. Larger models may require lifting equipment during installation and maintenance.

8. Manufacturing Process and Quality Strengths

8.1 Integrated research, manufacturing, and sales

The manufacturer operates as an integrated coupling enterprise with capabilities covering research and development, product manufacturing, technical support, and sales. This structure allows design feedback from industrial applications to be incorporated into product improvement and custom engineering work.

For buyers, integrated capabilities can simplify communication. Technical requirements, drawings, material specifications, machining details, inspection documents, and after-sales questions can be coordinated through one engineering and production organization rather than multiple disconnected suppliers.

8.2 Specialized industrial production facilities

The company’s new workshop covers approximately 16,463.52 square metres. It includes a heavy workshop of approximately 5,500 square metres, a precision workshop of approximately 4,600 square metres, office and support facilities, a warehouse, and dedicated roads and service areas.

The separation of heavy and precision production spaces is beneficial for coupling manufacturing. Large components may require substantial handling capacity, while gear hubs, sleeves, bores, and mating surfaces require controlled machining and inspection. Adequate warehouse capacity also supports organized material management, component storage, finished-product protection, and delivery preparation.

8.3 Precision machining and gear manufacturing

Gear couplings depend on accurate tooth geometry, concentricity, bore quality, face runout, and alignment of mating components. Manufacturing must therefore control the complete chain from raw material preparation to rough machining, heat treatment where specified, precision machining, tooth cutting, deburring, cleaning, assembly, and final inspection.

Precision machining of the bore and external surfaces helps maintain correct shaft positioning. Accurate gear cutting ensures that torque is distributed across the intended tooth contact area. Proper control of tooth profile and crowned geometry supports the coupling’s ability to compensate for limited misalignment while avoiding concentrated edge loading.

Depending on the confirmed technical specification, production may include turning, milling, gear hobbing or shaping, drilling, boring, keyway machining, surface finishing, and dimensional verification. Heat treatment and hardness requirements should be defined according to the applicable design and material standard. These details should be confirmed in the product drawing or quality documentation for each order.

8.4 Testing and inspection

Reliable coupling production requires more than visual inspection. Typical quality-control activities may include raw material verification, dimensional inspection, bore and keyway checks, gear-tooth inspection, runout measurement, surface-condition inspection, bolt and seal verification, assembly checks, and final documentation review.

Advanced testing facilities support the identification of manufacturing deviations before shipment. Inspection records can provide useful evidence that the coupling conforms to the ordered dimensions and performance requirements. For critical applications, buyers may request material certificates, dimensional reports, hardness results, balance information, and other agreed quality documents.

8.5 Quality management and process consistency

The company reports compliance with quality-management practices associated with ISO 9001. A structured quality system helps establish repeatable procedures for purchasing, production planning, process control, inspection, nonconformance handling, document control, and customer service.

Process consistency is especially important for couplings because the product is normally installed as a matched mechanical assembly. Variations in bore position, gear alignment, tooth quality, or sleeve fit can affect the performance of the entire shaft line. Controlled manufacturing reduces the likelihood of premature wear and simplifies replacement between equivalent units.

8.6 Non-standard design and customization

Industrial machinery frequently includes non-standard shaft dimensions, restricted installation space, unusual flange arrangements, special materials, custom keyways, alternative coatings, or distinctive operating conditions. The manufacturer provides non-standard coupling design and manufacturing support for such requirements.

Customization should begin with complete operating information. Useful data include motor power, speed, starting method, nominal and peak torque, shaft diameters, shaft lengths, keyway details, axial movement, radial and angular misalignment, ambient temperature, contamination, installation space, duty cycle, braking conditions, and applicable industry standards.

A customized design should be reviewed and approved before production. Drawings, tolerances, material requirements, heat treatment, lubrication, balance grade, inspection scope, and packaging requirements should be clearly documented. This approach reduces ambiguity and ensures that the final product is matched to the actual machine rather than selected only from a nominal catalogue size.

9. Installation Recommendations

9.1 Preparation before installation

Before installation, confirm the model, bore sizes, shaft-hole lengths, rotation direction, key dimensions, grease requirements, fastener condition, and supplied drawings. Inspect the coupling for transport damage, corrosion, contamination, or missing parts.

Measure the motor shaft and driven shaft. Check diameter, roundness, surface finish, keyway condition, shoulder position, and shaft extension length. Remove burrs and clean all mating surfaces. Do not force a coupling onto a damaged or undersized shaft.

Check the foundations and mounting surfaces of the connected machines. Soft foot, loose anchor bolts, uneven shims, and distorted baseplates can prevent accurate alignment. Correct these conditions before final coupling alignment.

9.2 Alignment

Initial alignment should be completed using an appropriate precision method. A dial indicator or laser alignment system can measure offset and angular error. The values must remain within the limits specified for the GBD coupling and the connected equipment.

Alignment should be checked at several shaft rotational positions where practical. This helps identify bent shafts, eccentric hubs, irregular mounting surfaces, or measurement errors. After tightening foundation and coupling fasteners, repeat the alignment check because tightening can move the equipment.

For hot machinery, account for thermal growth. The cold alignment target may require an offset so that the shafts become correctly aligned at normal operating temperature. The required correction depends on the motor, gearbox, base, bearing arrangement, and temperature difference.

9.3 Mounting the hubs and sleeve

Install the hubs using the specified mounting method. Do not hammer directly on gear teeth, seals, or precision surfaces. If heating is required for an interference fit, use a controlled heating method and avoid overheating seals or altering material properties.

Position the hubs at the correct axial locations and verify the coupling length. Install keys, retaining components, bolts, and locking devices according to the approved drawing. Fasteners should be tightened using the specified sequence and torque. Incorrect tightening can produce sleeve distortion, loosening, or uneven gear engagement.

9.4 Lubrication and guarding

Fill the coupling with the specified quantity and grade of grease. The grease must be compatible with the gear teeth, seals, speed, operating temperature, and environmental conditions. Overfilling may increase churning and temperature, while underfilling can result in inadequate tooth lubrication.

After assembly, install a suitable guard. The guard must prevent contact with rotating parts and must not obstruct inspection or lubrication access. It should be strong enough to contain parts in the event of a mechanical failure and should comply with the relevant site safety requirements.

10. Maintenance and Troubleshooting

10.1 Routine inspection

Routine inspection should include observation of noise, vibration, temperature, grease leakage, loose bolts, seal condition, and abnormal movement. A change in operating sound may indicate tooth wear, insufficient lubrication, misalignment, or a damaged bearing.

Maintenance personnel should examine the coupling during planned shutdowns. Remove contamination around the seals and check for cracks, deformation, unusual wear marks, or evidence of overheating. Inspect the bolt heads and locking arrangements for movement.

10.2 Lubricant management

Lubricant condition is central to the service life of a gear coupling. Grease can degrade because of heat, water, dust, oxidation, mechanical working, or incompatible additives. The replenishment interval should be based on speed, load, environment, and operating hours.

When changing grease, remove contaminated lubricant as far as practical and avoid mixing incompatible products. The replacement grease should meet the approved specification. If the coupling operates at high speed, low temperature, or elevated temperature, lubricant selection should be reviewed with the supplier or a lubrication specialist.

10.3 Wear and damage indicators

Common indicators of gear-coupling problems include metallic particles in the grease, pitting or scoring on tooth surfaces, excessive backlash, tooth edge loading, seal failure, elevated temperature, and increased vibration. These symptoms should not be ignored.

Tooth wear may result from misalignment beyond the permitted range, inadequate grease, contamination, excessive torque, repeated shock loading, incorrect assembly, or insufficient shaft support. If significant wear is found, inspect the shafts, bearings, keys, seals, and machine foundation before installing a replacement coupling.

10.4 Troubleshooting table

Observed Condition	Possible Cause	Recommended Action
Excessive vibration	Misalignment, imbalance, loose foundation, worn teeth, or bearing damage	Stop safely, inspect the shaft line, verify alignment, check balance and bearings, and examine gear teeth.
High coupling temperature	Insufficient or unsuitable grease, excessive speed, overfilling, or excessive misalignment	Check lubricant quantity and grade, confirm operating speed, inspect seals, and measure alignment.
Grease leakage	Damaged seal, loose fastener, excessive internal pressure, or housing damage	Replace damaged sealing parts, retighten correctly, clean the housing, and refill with the approved amount.
Abnormal metallic noise	Insufficient lubrication, tooth interference, loose parts, or severe wear	Shut down for inspection and do not continue operation until the cause is identified.
Rapid tooth wear	Misalignment, overload, contamination, incorrect grease, or unsuitable application factor	Review operating loads, alignment, environmental protection, lubrication, and model selection.
Difficulty during installation	Burrs, incorrect bore, damaged keyway, shaft runout, or improper fit	Measure all mating components, remove burrs, verify the drawing, and correct the shaft or coupling as required.

11. Safety and Reliability Considerations

A coupling is a rotating pressure-free mechanical component, but it can create serious hazards if it is incorrectly installed or operated without a guard. Installation and maintenance must be performed by trained personnel using appropriate lockout, tagout, lifting, and personal-protection procedures.

The machine must be isolated from electrical, hydraulic, pneumatic, stored mechanical, and gravitational energy before the coupling is opened or handled. A motor that appears stopped may restart automatically or may retain stored energy in a brake, flywheel, elevated load, or tensioned system.

The coupling should not be operated above its allowable speed, nominal torque rating, temperature range, or permitted misalignment. Sudden changes in vibration, noise, grease leakage, or temperature require investigation. For lifting and other safety-critical machinery, the coupling must be incorporated into the complete equipment risk assessment and must not be assumed to provide overload protection unless specifically designed for that function.

Where a system requires torque limitation, overload release, or emergency disconnect capability, a dedicated safety coupling or torque limiter should be considered. The product category includes safety couplings and customized coupling solutions, allowing the manufacturer to support broader transmission-system requirements.

12. Why Select This Manufacturing Partner?

Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. focuses on the research, manufacture, and supply of industrial couplings. Its product portfolio includes toothed couplings, elastic sleeve pin couplings, elastic column pin couplings, gear couplings with elastic pins, universal couplings, tire couplings, jaw couplings, star couplings, diaphragm couplings, drum couplings, grid couplings, Oldham couplings, flange couplings, clip-shell couplings, roller-chain couplings, safety couplings, and non-standard coupling assemblies.

This breadth is valuable to equipment designers because the correct solution is not always a single standard coupling. A company with experience across flexible, rigid, safety, metallic, and non-metallic coupling types can compare alternatives based on torque, speed, misalignment, vibration, environment, installation space, maintenance requirements, and cost of ownership.

The manufacturer’s reported advantages include strong research and development capability, substantial production capacity, advanced inspection and testing facilities, strict quality control, complete coupling specifications, custom design support, technical assistance before purchase, and after-sales service. These capabilities are particularly relevant for drum gear couplings, where correct dimensional fit and application engineering are as important as the basic torque rating.

Customers can request technical support for model selection, shaft-hole arrangement, installation dimensions, lubricant requirements, customized materials, special environmental conditions, and non-standard mechanical interfaces. The company’s experience in metallurgical, mining, water, lifting, paper, port, and other industrial sectors provides an application-oriented foundation for project support.

13. Procurement Checklist

When requesting a quotation for a GBD motor shaft extension drum gear coupling, provide the following information:

1. Motor power, rated speed, starting torque, and service duty.

2. Driven-machine type, operating load, peak torque, and frequency of starts or reversals.

3. Motor-side and driven-side shaft diameters.

4. Shaft-hole lengths, keyway dimensions, shaft shoulders, and retaining arrangements.

5. Required coupling length and available radial and axial space.

6. Operating speed range and any overspeed or braking condition.

7. Expected axial, radial, and angular misalignment.

8. Ambient temperature, moisture, dust, chemicals, and outdoor exposure.

9. Required material, heat treatment, coating, balance, inspection, and documentation.

10. Applicable machine standards, customer specifications, and delivery requirements.

Providing complete information helps the manufacturer verify whether a standard GBD model is appropriate or whether a customized arrangement is required. It also reduces the risk of selecting a coupling that fits the shaft diameter but lacks adequate torque, speed, space, or environmental capability.

14. Frequently Asked Questions

Q1. What type of coupling is the GBD series?

The GBD series is a flexible coupling with non-elastic metallic elements. It uses a drum-gear transmission mechanism to transmit torque while compensating for limited axial, radial, and angular shaft misalignment.

Q2. What standard does the product follow?

The product is manufactured in accordance with the Q/YG 11003X-2018 enterprise standard. Specific drawings, tolerances, materials, inspection requirements, and documentation should be confirmed for the selected model and order.

Q3. What is the torque range?

The listed GBD series covers nominal torque from 1.6 kN·m for GBD1 to 56 kN·m for GBD10. The appropriate model must be selected using actual operating torque, starting conditions, peak loads, and an application service factor.

Q4. What is the maximum allowable speed?

The allowable speed depends on the model. GBD1 is listed at up to 5,600 r/min, while GBD10 is listed at up to 2,450 r/min. The final allowable speed must be checked against the official model drawing and the actual installation conditions.

Q5. What bore sizes are available?

The series supports shaft-hole diameters from approximately 22 mm to 200 mm. Options vary by model and may include Y, J1, and Z1 shaft-hole configurations, together with the detailed d1, d2, and dz dimensions shown in the product data.

Q6. Does the coupling eliminate the need for shaft alignment?

No. The coupling compensates for limited misalignment, but accurate initial alignment is still necessary. Excessive misalignment can cause tooth edge loading, high temperature, vibration, seal damage, and premature failure.

Q7. Does the GBD coupling require lubrication?

Yes. The gear teeth require suitable grease for friction reduction, wear protection, and heat control. The listed grease quantity ranges from approximately 107 mL to 1,320 mL depending on the model and configuration.

Q8. Can the coupling be used in lifting equipment?

It can be considered for suitable lifting and conveying applications, including port equipment, hoists, and drive systems. The model must be selected for the actual torque cycles, braking loads, speed, shaft arrangement, and safety requirements of the equipment.

Q9. Is the coupling suitable for severe shock loads?

The metallic gear structure is suitable for many heavy-duty applications and can tolerate dynamic industrial loading when correctly sized. Severe shock, reversing, blocking, or cyclic torque conditions require a suitable service factor and, where necessary, a torsional analysis.

Q10. Can non-standard versions be manufactured?

Yes. The manufacturer undertakes customized and non-standard coupling design and manufacture. Customers should provide detailed shaft, torque, speed, dimensional, environmental, material, and documentation requirements for engineering review.

Q11. What should be checked during maintenance?

Maintenance personnel should check grease condition, leakage, seals, fasteners, vibration, temperature, alignment, gear-tooth wear, shaft condition, keys, and bearing support. Any unusual noise, metallic particles, or rapid temperature increase should be investigated promptly.

Q12. How does the GBD coupling compare with an elastomeric coupling?

The GBD coupling uses metallic gear elements and is oriented toward high torque, heavy-duty service, and harsh industrial environments. Elastomeric couplings may provide stronger torsional damping and electrical isolation, but their flexible elements can be more sensitive to temperature, chemicals, aging, and certain types of shock loading.

15. Conclusion

The GBD motor shaft extension drum gear coupling is a robust solution for industrial power transmission where high torque, misalignment compensation, compact construction, and dependable service are required. Its principal technical advantages include a torque range of 1.6 to 56 kN·m, allowable speeds up to 5,600 r/min for smaller models, bore options from 22 to 200 mm, internal grease storage, and a bolted gear-sleeve construction intended to support efficient installation and maintenance.

Its strongest application advantages appear in metallurgical machinery, mining equipment, lifting and conveying systems, port machinery, hydraulic engineering equipment, paper machinery, and other demanding drive systems. Compared with rigid couplings, it provides greater alignment flexibility. Compared with many elastomeric designs, it offers a durable metallic torque path for heavy loads and harsh conditions. Compared with some alternative gear or chain arrangements, its compact, enclosed construction can support efficient integration into industrial machinery.

Performance depends on correct engineering. Torque, speed, bore, shaft-hole length, moment of inertia, misalignment, lubrication, environmental protection, and service factor must all be considered. Accurate alignment, correct grease, proper guarding, and planned inspection are essential to achieving long service life.

With integrated research and development, heavy and precision workshops, manufacturing and testing capabilities, broad coupling experience, quality-management practices, and customization support, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. is positioned to supply both standard GBD couplings and engineered transmission solutions for specialized industrial equipment.

References

1. Q/YG 11003X-2018, Enterprise Standard for Motor Shaft Extension Drum Gear Couplings.

2. GBD Motor Shaft Extension Drum Gear Coupling Product Data and Basic Dimension Schedule.

3. ISO 9001, Quality Management Systems—Requirements.

4. General engineering practice for the selection, alignment, lubrication, guarding, and maintenance of industrial gear couplings.

5. Manufacturer-provided technical information for GBD1 through GBD10 coupling models.

Product: GBD Motor shaft extension drum gear coupling(Q/YG 11003X-2018)
