GA Drum Gear Coupling: Heavy-Duty Torque Transmission, Misalignment Compensation, and Reliable Industrial Performance

The GA drum gear coupling is a heavy-duty flexible coupling designed for demanding mechanical power-transmission systems. It connects driving and driven shafts while transmitting high torque through the engagement of external gear hubs and an internally toothed drum-shaped sleeve. Unlike a rigid flange coupling, the GA design provides controlled flexibility that helps accommodate angular, radial, and axial shaft misalignment. This combination of strength, flexibility, compact construction, and serviceability makes it suitable for mining, metallurgy, steel production, pulp and paper, marine engineering, port machinery, lifting equipment, conveyors, crushers, rolling mills, rotary kilns, and other severe industrial applications.

Developed according to the Q/YG12006X-2018 technical standard, the GA series is available in a broad range of sizes from GA1 through GA30. The series covers nominal torque ratings from 800 N·m to 3,500,000 N·m, allowing engineers to select a coupling for both medium-duty and extremely high-load equipment. Depending on the model, allowable speed can reach 7,100 r/min, while the available shaft-hole range supports many common industrial shaft dimensions.

The coupling is manufactured by Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd., a specialist manufacturer integrating coupling research and development, production, testing, sales, and technical service. The company supplies standard and customized couplings for metallurgical equipment, mining systems, water equipment, lifting machinery, paper machinery, port equipment, and other industries in which dependable torque transmission is essential.

1. The Role of a Flexible Gear Coupling in Industrial Machinery

Power-transmission equipment rarely operates under perfectly ideal alignment conditions. Shafts may shift because of thermal expansion, foundation settlement, bearing wear, installation tolerances, structural deflection, or manufacturing variation. Even a small amount of misalignment can create additional reaction forces. These forces may accelerate bearing fatigue, increase vibration, generate tooth wear, and reduce the service life of connected machinery.

A rigid coupling transmits torque effectively when the two shafts are precisely aligned. However, it has limited ability to tolerate movement during operation. If the connected shafts move relative to one another, the rigid coupling transfers much of the resulting force directly into the bearings and shafts. This can lead to frequent maintenance and unplanned downtime.

The GA drum gear coupling addresses this challenge through a flexible gear connection. Each shaft is fitted with a gear hub containing external teeth. A drum-shaped sleeve with internal teeth engages both hubs. The sleeve and hubs transmit torque through a large number of gear-tooth contact points while allowing limited relative movement between the shafts. The drum profile distributes the load and provides space for angular and radial movement, while the axial construction permits a defined amount of axial displacement.

This arrangement offers a practical balance between rigidity and flexibility. The coupling remains sufficiently strong for high torque, yet it does not force the connected shafts to remain in one perfectly fixed position. In a well-designed installation, it reduces the mechanical effects of unavoidable operating misalignment without sacrificing power-transmission capacity.

2. Product Structure and Operating Principle

2.1 Main Components

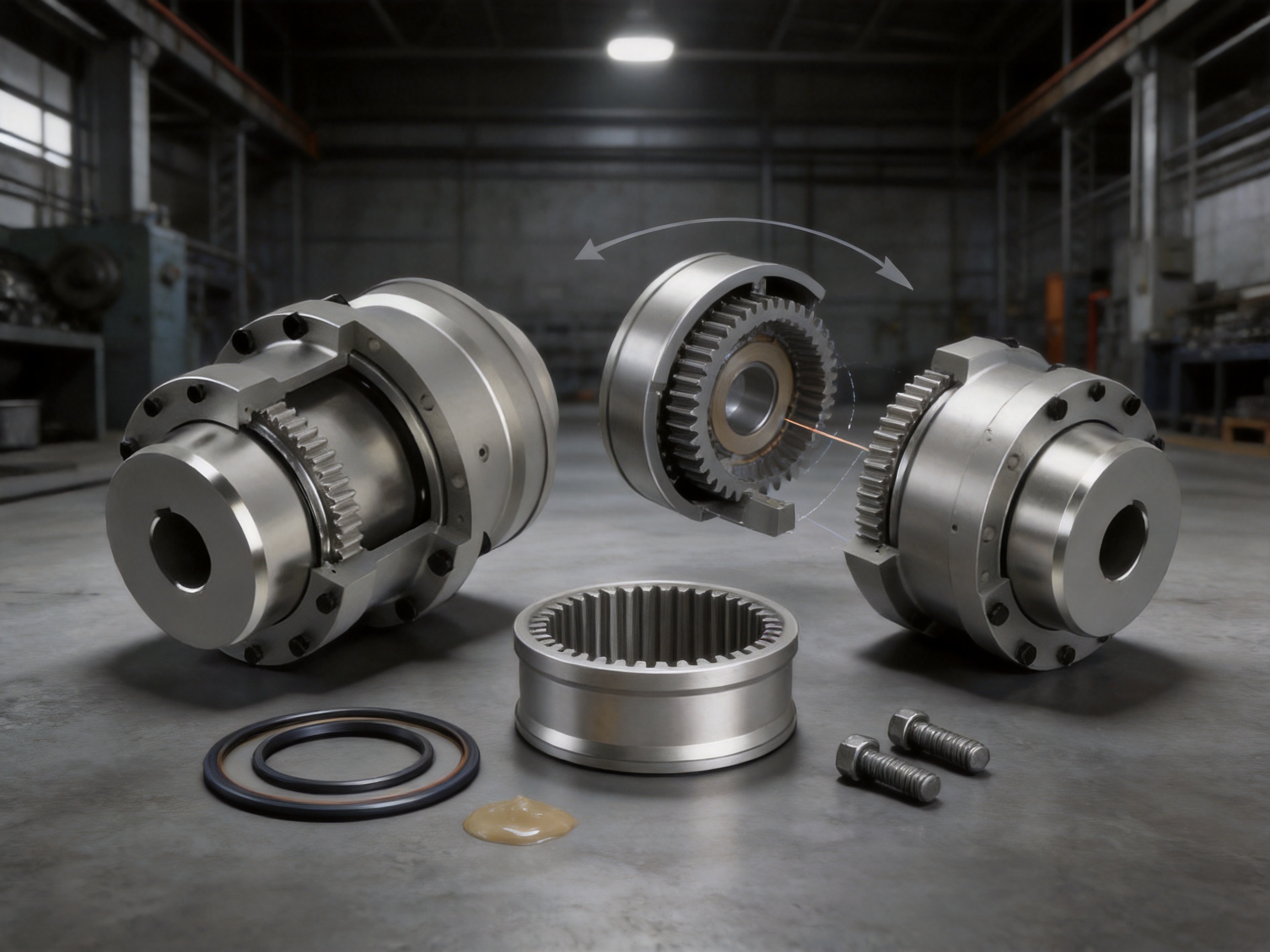

The GA coupling consists primarily of two external-toothed hubs, one drum-shaped internally toothed sleeve, sealing elements, fastening components, and a suitable quantity of coupling grease. The hubs are mounted on the driving and driven shafts by the specified bore and keyway arrangement, or by another approved shaft connection where customization is required.

The external teeth on each hub mesh with the internal teeth of the sleeve. The sleeve surrounds the hubs and forms the flexible connection between them. Depending on coupling size, the sleeve may use an O-ring or a circular-section rubber sealing strip to retain lubricant and protect the tooth surfaces from contamination.

The gear teeth are manufactured with a specially shaped profile. The drum-shaped tooth geometry enables the teeth to remain engaged while accommodating angular displacement between the shafts. It also helps distribute contact stress across the tooth width instead of concentrating load at one narrow edge.

2.2 Torque Transmission

When the driving shaft rotates, its hub transfers torque to the internal teeth of the sleeve. The sleeve then transfers the torque to the external teeth of the hub on the driven shaft. Because many teeth share the transmitted load, the coupling can handle substantially higher torque than many compact elastomeric coupling designs of similar envelope size.

The multi-tooth engagement also provides stable operation under changing loads. In applications such as crushers, conveyors, rolling mills, and lifting equipment, torque may fluctuate significantly during starting, stopping, reversing, or material engagement. The GA coupling is designed for these demanding conditions, provided that the selected model, service factor, lubrication, speed, and alignment are appropriate for the application.

2.3 Misalignment Compensation

The flexible sleeve allows the coupling to compensate for three principal forms of misalignment. Angular misalignment occurs when the connected shaft centerlines intersect at an angle. Radial or parallel misalignment occurs when the centerlines are parallel but offset. Axial misalignment occurs when the shafts move toward or away from one another along their common axis.

The coupling does not eliminate the need for correct alignment. Instead, it provides a controlled tolerance for operating movement and installation variation. Correct initial alignment remains essential because excessive misalignment increases tooth pressure, heat generation, wear, and lubricant degradation. The best performance is achieved when the coupling is installed within the recommended alignment limits and inspected regularly.

3. Core Performance Advantages

3.1 Very High Torque Capacity

The most important advantage of the GA series is its broad torque range. The smallest listed model, GA1, has a nominal torque rating of 800 N·m, while the largest model, GA30, reaches 3,500,000 N·m. This range allows the same basic coupling concept to serve equipment with widely different power requirements.

High torque capacity is supported by the coupling’s large number of engaged gear teeth, robust hubs, strong sleeve construction, and carefully selected materials. The load is distributed across a relatively large effective tooth area, reducing the need to concentrate torque through a small flexible element. This makes the design especially suitable for high-power equipment in which ordinary elastomeric couplings may become too large, too soft, or unsuitable for the operating environment.

3.2 Compensation for Operating Misalignment

Many competing rigid coupling designs require extremely precise alignment and provide little tolerance for shaft movement. A conventional flexible coupling with an elastomeric element may provide good flexibility, but its torque capacity and temperature resistance can be limited by the polymer material. The GA coupling uses a metal gear connection, enabling it to combine substantial flexibility with a high load rating.

By accommodating angular, radial, and axial movement, the coupling can reduce the transfer of damaging forces to connected bearings and shafts. This may extend bearing life, reduce vibration, minimize tooth-edge loading, and improve overall equipment reliability. In long-span or thermally variable machinery, this ability to accommodate movement can be particularly valuable.

3.3 Durable Metal Construction

The GA coupling is manufactured from strong engineering materials such as steel or ductile iron, depending on the design requirements and selected specification. Metal construction provides resistance to shock loads, repeated torque fluctuations, and harsh operating conditions. It also makes the coupling less dependent on the temperature limitations associated with many non-metallic flexible elements.

For applications exposed to high temperatures, heavy dust, impact loading, outdoor conditions, or corrosive industrial atmospheres, the material and surface-treatment selection can be adapted to the service environment. The gear surfaces may receive nitriding or other surface-hardening treatments. According to the supplied technical information, the nominal torque value can be multiplied by 1.3 when the gear surface is nitrided or surface hardened, subject to engineering confirmation and applicable operating conditions.

3.4 Stable and Efficient Power Transmission

Gear couplings transmit torque through positive mechanical engagement rather than relying on friction between a flexible insert and a hub. This results in a direct and efficient connection. Properly manufactured gear teeth provide smooth power transfer and controlled backlash. The coupling is therefore well suited to systems that require consistent rotational transmission.

Although no mechanical gear coupling should be described as completely free from all clearance under every condition, the GA design is intended to provide accurate tooth engagement and low uncontrolled backlash when correctly selected, manufactured, lubricated, and installed. This helps maintain stable operation while avoiding unnecessary adjustment components.

3.5 Broad Speed Capability

The smaller GA models can operate at relatively high rotational speeds. For example, the GA1 model has an allowable speed of up to 7,100 r/min, while GA2 is rated at up to 6,300 r/min and GA3 at up to 5,900 r/min. Allowable speed decreases as coupling size and mass increase, which is normal for large industrial couplings.

Speed selection must consider balance, shaft arrangement, bore size, coupling orientation, operating temperature, lubrication, and dynamic conditions. High-speed applications require careful alignment and may require additional balancing or special manufacturing arrangements. Zhongye can evaluate these requirements when producing a standard or customized design.

3.6 Easy Installation and Maintenance

The GA coupling has a straightforward arrangement with relatively few principal components. This simplifies assembly, inspection, and replacement. The sleeve can generally be removed or repositioned according to the shaft arrangement and installation design, allowing maintenance personnel to access the gear connection without dismantling the entire drive system.

Routine maintenance normally includes alignment checks, visual inspection of seals and fastening components, examination for abnormal wear, and replenishment or replacement of coupling grease at recommended intervals. A properly maintained gear coupling can provide a long service life and reduce the risk of unexpected shutdowns.

GA Drum gear coupling(Q/YG12006X-2018)

4. GA Series Range and Technical Selection

The GA1 through GA30 product range is designed to cover different torque, speed, bore, and dimensional requirements. Engineers should not select a coupling solely by comparing nominal motor power. The correct selection must account for actual operating torque, starting torque, peak torque, duty cycle, speed, shaft diameter, misalignment, ambient conditions, braking or reversing loads, and the required service factor.

Model	Nominal Torque	Allowable Speed	Representative Bore Range	Approximate Mass	Approximate Grease Quantity
GA1	800 N·m	7,100 r/min	16–38 mm	5.9 kg	55 mL
GA2	1,400 N·m	6,300 r/min	25–48 mm	9.7 kg	100 mL
GA3	2,800 N·m	5,900 r/min	30–60 mm	17.2 kg	140 mL
GA4	5,000 N·m	5,400 r/min	32–70 mm	24.9 kg	170 mL
GA5	8,000 N·m	5,000 r/min	40–80 mm	38 kg	270 mL
GA10	42,500 N·m	3,200 r/min	80–140 mm	156.7 kg	900 mL
GA15	224,000 N·m	1,900 r/min	190–250 mm	783.3 kg	5,000 mL
GA20	710,000 N·m	1,200 r/min	280–360 mm	2,263 kg	16,000 mL
GA25	1,400,000 N·m	850 r/min	400–500 mm	4,443 kg	34,000 mL
GA30	3,500,000 N·m	700 r/min	560–670 mm	9,541 kg	59,000 mL

The table provides representative values from the technical schedule. The full specification should be consulted for each individual bore, shaft-hole length, dimension, moment of inertia, mass, and grease requirement. Some listed bore sizes are subject to particular selection limitations. For example, the supplied data indicates that sizes marked with an asterisk are suitable only for selection as the d2 shaft hole. The maximum diameter of dz is specified as 220 mm.

4.1 Torque Selection

Nominal torque should exceed the calculated operating torque after the appropriate service factor has been applied. The operating torque may be calculated from power and speed using the standard relationship between rotational power, torque, and angular velocity. However, calculated average torque is not sufficient for applications with high starting loads, frequent reversing, impact loading, or intermittent material engagement.

Mining crushers, rolling mills, bucket elevators, hoists, and conveyors may generate transient loads substantially higher than their normal running torque. In these cases, the coupling selection should consider peak torque, emergency stopping, motor starting characteristics, braking torque, and the torsional behavior of the complete drive train.

4.2 Speed Selection

The selected model must operate below its allowable speed. The allowable speed listed in the technical table is associated with the specified coupling configuration and should not automatically be applied to every customized arrangement. Larger bores, special hubs, unusual spacer lengths, vertical installation, high ambient temperatures, or balancing requirements may affect the final allowable speed.

At high speed, even a small imbalance can produce significant centrifugal force. Therefore, shaft runout, hub concentricity, tooth accuracy, sleeve balance, and installation cleanliness are important. If the coupling will be used in a high-speed drive, the customer should provide complete operating data so that the manufacturer can verify the design.

4.3 Bore and Shaft Compatibility

The bore must match the shaft diameter, keyway, fit, and available shaft length. The coupling schedule includes multiple bore choices for many GA models. The maximum shaft-hole length and the values of d1, d2, and dz must be checked against the equipment drawing before ordering.

Where the standard bore range does not meet the application, customized hubs may be manufactured. Customization may include non-standard bores, keyways, splines, shrink-disc arrangements, special hub extensions, altered flange dimensions, spacer configurations, or corrosion-resistant materials. Each modification should be evaluated for strength, balance, manufacturability, and compatibility with the selected coupling model.

5. Manufacturing Processes and Quality Strengths

5.1 Integrated Research, Production, and Service

Zhongye Heavy Industry Technology integrates product development, manufacturing, and sales. This structure enables technical requirements to be transferred directly from application analysis to design and production. Instead of treating the coupling as an isolated catalog item, the company can review the complete drive arrangement, including shaft dimensions, motor characteristics, operating environment, installation conditions, and maintenance expectations.

This integrated approach is valuable for large or non-standard couplings. Heavy-duty power-transmission projects frequently involve unusual shaft diameters, limited installation space, special sealing requirements, or severe shock loads. A manufacturer with engineering and production capabilities in the same organization can reduce communication gaps and respond more efficiently to technical changes.

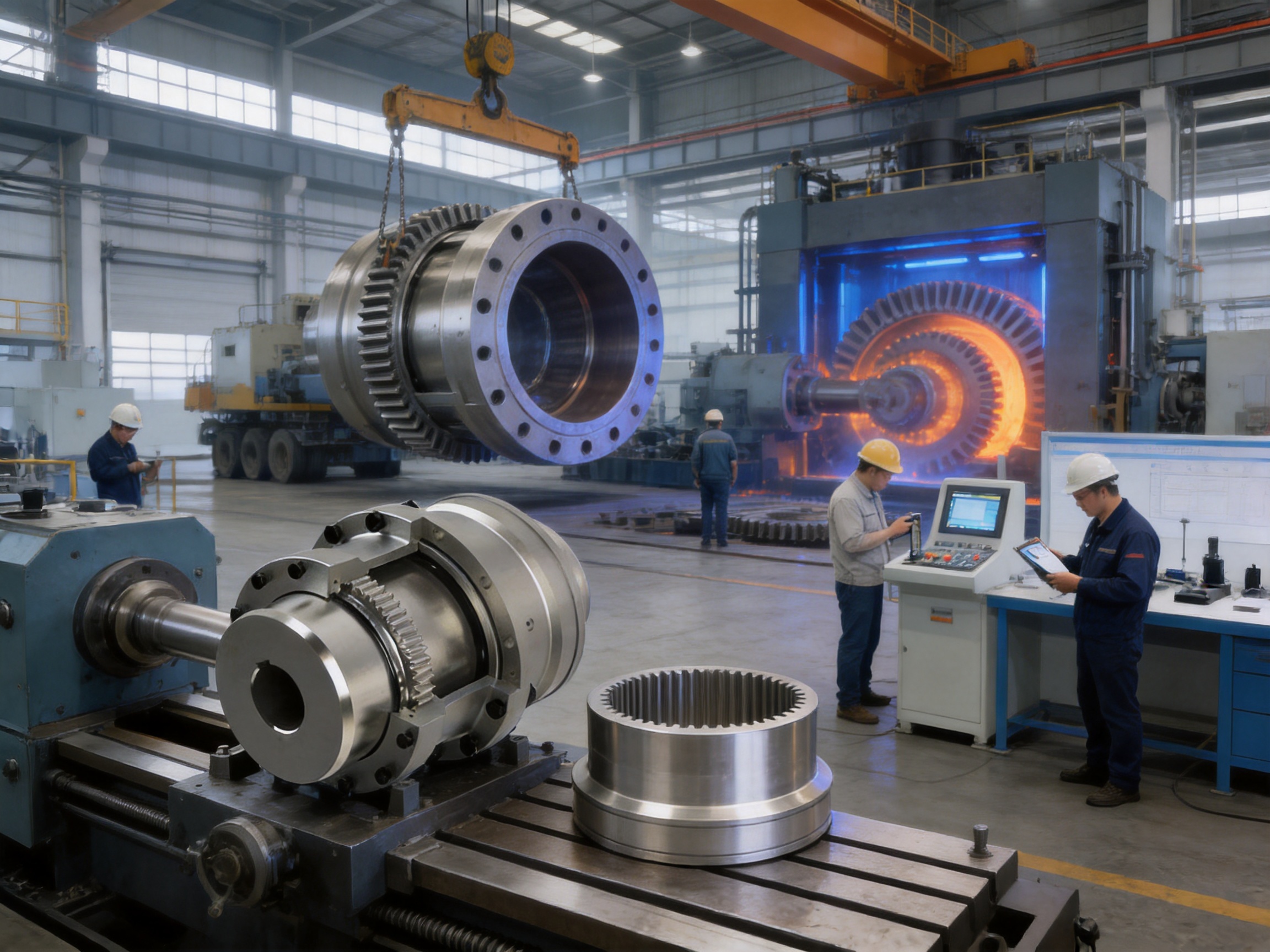

5.2 Heavy-Duty and Precision Workshop Resources

The company’s new workshop covers approximately 16,463.52 square meters. It includes a heavy workshop of approximately 5,500 square meters, a precision workshop of approximately 4,600 square meters, an office building and gymnasium, a dining hall, a warehouse, and supporting roads, landscaping, and parking areas.

The heavy workshop supports the handling and manufacture of large coupling components. Large GA models can weigh several tonnes, so production requires suitable lifting equipment, machining capacity, workholding systems, storage space, and inspection arrangements. A dedicated heavy-workshop environment helps improve production organization for large hubs and sleeves.

The precision workshop supports the manufacture and finishing of gear teeth, bores, keyways, sealing surfaces, and other critical features. Accurate tooth geometry and concentricity are essential because uneven contact can lead to localized stress, vibration, and premature wear. The combination of heavy machining resources and precision production capability enables the company to address both large structural components and fine transmission surfaces.

5.3 Material Control and Heat Treatment

Material selection is a central part of coupling performance. Hubs and sleeves must withstand torsional stress, bending effects, repeated loading, impact, and environmental exposure. Depending on the model and application, steel or ductile iron may be used. Material certificates and traceability records can help confirm that the selected material meets the intended specification.

Heat treatment and surface hardening improve the durability of gear teeth. Nitriding or other approved treatments can increase surface hardness and resistance to pitting, scuffing, and adhesive wear. The supplied specification notes a possible 1.3 multiplier for nominal torque when the gear surfaces receive nitriding or surface hardening. The actual rating should be confirmed for the final material, heat-treatment process, tooth geometry, lubrication, and operating conditions.

Controlled heat treatment also helps produce a suitable balance between surface hardness and core toughness. A tooth surface must resist wear, but the underlying material must remain sufficiently tough to absorb shock without cracking. Careful process control is therefore more important than simply maximizing hardness.

5.4 Precision Gear Manufacturing

The performance of a gear coupling depends heavily on tooth quality. Tooth profile, tooth spacing, flank finish, pitch accuracy, concentricity, and surface hardness influence load distribution and operating smoothness. Precision machining helps ensure that the sleeve and hub teeth engage uniformly throughout the intended operating range.

Manufacturing controls may include CNC turning, gear hobbing or shaping, precision boring, keyway machining, grinding or finishing where specified, dimensional inspection, and runout verification. The exact process route depends on the coupling size, material, production quantity, tooth requirements, and customer specification.

Large gear components require particular attention to deformation and handling. Machining sequences should be planned to maintain dimensional stability. After heat treatment, critical surfaces may require finish machining or corrective operations. Inspection of tooth surfaces and bores helps verify that the finished component is suitable for assembly.

5.5 Inspection and Testing

Quality control for a GA coupling should cover incoming materials, rough machining, heat treatment, final machining, gear accuracy, bore dimensions, sealing surfaces, assembly fit, and final appearance. Dimensional inspection confirms that the coupling conforms to the approved drawing and technical schedule.

Depending on project requirements, inspection may include hardness testing, material verification, non-destructive examination, concentricity measurement, runout measurement, gear-tooth contact checks, balancing verification, and assembly inspection. For large or customized couplings, quality documentation can be prepared to support equipment commissioning and maintenance records.

The company emphasizes strict quality control, advanced testing facilities, complete specifications, and compliance with international standards and certifications such as ISO 9001. These capabilities support consistent production and provide customers with greater confidence when using the coupling in critical industrial drives.

6. Advantages Compared with Alternative Coupling Types

6.1 Compared with Rigid Flange Couplings

Rigid flange couplings are mechanically simple and can transmit high torque, but they require accurate shaft alignment. They do not normally compensate for angular, radial, or axial displacement. Any movement in the connected equipment may be transferred directly to bearings and shafts.

The GA drum gear coupling provides a more forgiving connection. It maintains positive torque transmission while accommodating defined operating misalignment. This can be advantageous in equipment exposed to thermal expansion, foundation movement, or structural deflection. The trade-off is that the GA coupling requires lubrication and periodic inspection, whereas a simple rigid coupling may require less routine attention when alignment remains perfect.

6.2 Compared with Elastomeric Couplings

Elastomeric couplings use rubber, polyurethane, or another flexible material to transmit torque and absorb vibration. They can be quiet, lightweight, and convenient for moderate-duty equipment. However, the flexible element may be sensitive to temperature, oil, ultraviolet exposure, ozone, chemicals, or repeated overload.

The GA coupling uses metal gear engagement rather than a polymer element as the primary torque-transmitting mechanism. It is therefore more appropriate for very high torque, high shock loads, and harsh industrial environments. It may not provide the same degree of torsional damping as a soft elastomeric coupling, so the selection should consider whether the system requires vibration isolation or simply reliable torque transmission.

6.3 Compared with Diaphragm Couplings

Diaphragm couplings can offer high-speed operation, no lubrication, and precise torsional behavior. They are often selected for turbines, compressors, pumps, and other equipment where low mass and clean operation are important. However, their torque and misalignment capability depend on thin metallic diaphragms, and they may require careful design for high-shock or extremely high-torque applications.

The GA drum gear coupling is generally better suited to robust, high-load industrial machinery. Its gear teeth and heavy construction can tolerate substantial torque and shock. It requires lubrication and may have greater mass, but these characteristics are acceptable or advantageous in mining, steel, lifting, port, and heavy-process equipment.

6.4 Compared with Chain and Grid Couplings

Chain and grid couplings can provide useful flexibility and may absorb some shock and vibration. Nevertheless, their performance can be affected by wear of the chain or grid element, lubrication conditions, enclosure design, and the need for periodic replacement of the flexible component.

The GA coupling provides a more enclosed and structurally robust gear connection. With suitable sealing and grease, the gear teeth are protected from contamination and can maintain reliable load transfer for extended periods. It is particularly competitive where the required torque exceeds the practical range of smaller chain or grid couplings.

7. Applications Across Heavy Industry

7.1 Mining and Quarrying

Mining and quarrying machinery operates under dust, vibration, shock, and fluctuating load conditions. Conveyors may experience sudden material loading, while crushers and feeders can generate severe torque peaks. The GA coupling is suited to these conditions because of its high torque capacity, durable metal construction, and ability to accommodate shaft movement.

In conveyor drives, the coupling can be installed between a motor, gearbox, and pulley or between other major drive components, subject to the equipment layout. In crushers, the selection must account for starting torque, jam-clearing loads, reversing cycles, and torsional impacts. The use of an appropriately sized coupling can help protect bearings and reduce damage caused by misalignment.

7.2 Steel and Metallurgical Equipment

Steel plants contain some of the most demanding power-transmission systems. Rolling mills, transfer tables, cooling-bed equipment, straightening machines, rotary kilns, and other systems may operate continuously while exposed to heat, dust, water, scale, and severe load changes.

The GA coupling’s metal construction and gear-tooth load capacity make it suitable for high-power steel equipment. Surface hardening can be considered where tooth wear resistance and higher nominal capacity are required. Sealing and lubrication are especially important in steel plants because water, scale, and process contaminants can damage gear surfaces if they enter the coupling.

7.3 Pulp and Paper Machinery

Paper machines and pulpers often require continuous operation, stable speed, and dependable transmission. A coupling failure can interrupt production and create substantial losses. The GA coupling provides a durable connection for high-power rolls, pumps, pulpers, refiners, and auxiliary drive equipment.

Paper mills may contain moisture, chemical vapors, fibers, and elevated temperatures. The coupling configuration should therefore be selected with appropriate seals, grease, corrosion protection, and inspection intervals. The manufacturer can provide customized materials or protective treatments where the standard configuration does not adequately address the operating environment.

7.4 Marine and Offshore Engineering

Marine propulsion systems, thrusters, deck machinery, winches, pumps, and offshore handling equipment require components that remain dependable under vibration, changing loads, humidity, salt exposure, and limited maintenance access. The GA coupling can be used in suitable marine drive applications when the material, sealing, corrosion protection, balance, and classification requirements are properly addressed.

Marine applications may require special documentation and additional verification. Shaft alignment can change because of hull deflection, thermal variation, or loading conditions. A flexible gear coupling can provide useful compensation, but the actual design must be evaluated for the complete shaft line and the relevant marine engineering rules.

7.5 Lifting and Port Equipment

Cranes, ship loaders, stacker reclaimers, hoists, winches, and port conveyors frequently experience frequent starts and stops, braking, reversing, and sudden load changes. These operating characteristics require a coupling with sufficient peak-load capacity and reliable performance during transient events.

The GA series can be selected for high-torque lifting and conveying systems. The coupling arrangement should consider brake location, emergency stops, vertical or horizontal installation, suspended loads, and the consequences of coupling failure. Where safety requirements are especially strict, additional protective devices or a fail-safe system design may be required.

8. Installation Recommendations

8.1 Pre-Installation Inspection

Before installation, verify the model, bore sizes, keyways, shaft dimensions, rotation direction, and coupling orientation. Inspect all parts for transport damage, corrosion, burrs, contamination, or deformation. Confirm that the gear teeth are clean and that sealing grooves are undamaged.

Measure shaft diameter, shaft runout, key dimensions, shaft spacing, and the available axial installation space. Compare these measurements with the approved coupling drawing. Do not force a hub onto a shaft if the fit is incorrect. A damaged bore or keyway can create stress concentration and compromise torque transmission.

8.2 Alignment

Align the shafts as accurately as practical before tightening the hubs. The coupling’s flexibility is intended to accommodate operating movement, not to compensate for careless installation. Excessive initial misalignment may overload the gear teeth and reduce service life.

Alignment may be performed using dial indicators, laser alignment tools, or other approved methods. The final target should account for thermal growth, expected foundation movement, and the specific equipment manufacturer’s recommendations. After trial operation, recheck alignment if the equipment experiences unusual vibration or temperature rise.

8.3 Lubrication

Lubrication is essential for gear coupling performance. The grease must cover the tooth flanks and remain stable over the expected speed and temperature range. The quantity should follow the technical specification for the selected model. The table provides approximate grease quantities ranging from 55 mL for GA1 to 59,000 mL for GA30.

Using too little grease can cause rapid wear, overheating, and surface damage. Using an unsuitable grease can result in separation, hardening, leakage, or inadequate film strength. Mixing incompatible greases should be avoided. The maintenance plan should specify lubricant type, quantity, replenishment interval, and inspection method.

8.4 Sealing and Fastening

Seals must be correctly positioned before the sleeve is assembled. The sealing surfaces should be clean and free from scratches. Fasteners should be tightened according to the approved torque values and installation sequence. Locking arrangements should be checked before commissioning.

For larger couplings, the technical notes indicate a special sealing arrangement when D2 is at least 465 mm, using a circular-section rubber strip bonded in place. This feature should be installed according to the manufacturer’s instructions to maintain lubricant retention and contamination protection.

9. Maintenance and Troubleshooting

9.1 Routine Maintenance

Maintenance intervals depend on speed, load, environment, operating hours, and the consequences of failure. A routine inspection should check for grease leakage, seal damage, abnormal noise, vibration, loose fasteners, elevated temperature, and visible wear.

Lubricant condition can provide early warning of problems. Metallic particles, discoloration, burnt odor, hardening, or excessive contamination may indicate tooth wear, overheating, water entry, or incorrect lubrication. If abnormal grease is found, the coupling should be inspected before returning the equipment to full operation.

9.2 Common Symptoms and Possible Causes

Abnormal noise may result from insufficient grease, excessive misalignment, tooth damage, loose components, or an incorrect coupling size. Excessive temperature may indicate high speed, overload, inadequate lubrication, seal friction, or misalignment. Vibration may be associated with imbalance, shaft runout, improper assembly, or uneven tooth contact.

Rapid tooth wear can result from contamination, inadequate grease, excessive angular displacement, or repeated overload. Seal leakage may be caused by damaged sealing elements, excessive pressure, incorrect assembly, or sleeve movement beyond the intended range. Each symptom should be investigated systematically rather than corrected by adding grease alone.

9.3 Service Life Extension

The service life of a GA coupling can be extended through correct selection, precision alignment, suitable lubrication, effective sealing, controlled loading, and scheduled inspection. The coupling should be protected from unnecessary impact during installation and removal. Hubs should not be hammered directly unless an approved method specifically permits it.

When equipment is modified, such as by increasing motor power, changing gearbox ratio, raising operating speed, or introducing a new braking system, the coupling selection should be reviewed. The original coupling may no longer have an adequate torque or speed margin.

10. Custom Engineering and Non-Standard Couplings

Standard catalog dimensions address many applications, but heavy industrial equipment often requires a customized solution. Zhongye undertakes the design and manufacture of non-standard couplings, allowing the GA concept to be adapted to specific shaft lines and installation restrictions.

Customization may involve shaft-hole dimensions, keyway standards, hub length, external diameter, sleeve length, spacer arrangement, flange configuration, mounting method, sealing system, material grade, heat treatment, corrosion protection, or special balancing requirements. The company’s engineering team can also evaluate the coupling together with braking systems, gearboxes, motors, drums, rolls, and other connected components.

A successful custom design begins with accurate application data. Customers should provide rated power, operating speed, shaft diameters, shaft lengths, center distance, direction of rotation, starting method, peak torque, braking conditions, ambient temperature, exposure to water or chemicals, installation orientation, and expected maintenance practices.

For large couplings, transportation and installation should also be considered during design. Component weight, lifting points, access clearance, split-sleeve arrangements, and assembly sequence can influence the final configuration. Designing these details in advance can significantly reduce installation time at the customer’s site.

11. Why Manufacturer Capability Matters

A coupling is a critical mechanical component, even though it is often smaller than the motor or gearbox in a drive system. Its failure can stop an entire production line. Therefore, purchasing decisions should consider more than nominal torque and price. Manufacturing consistency, engineering support, inspection capability, spare-parts availability, and after-sales service all influence the true operating cost.

Zhongye provides technical support before production, including coupling selection, non-standard design, drawing confirmation, and application consultation. During manufacturing, the company applies quality-control procedures and uses heavy and precision workshop resources to produce both standard and large custom components. After delivery, technical support can assist with installation, maintenance, troubleshooting, and replacement selection.

The company’s product portfolio includes toothed couplings, elastic sleeve column pin couplings, elastic column pin couplings, gear couplings with elastic pins, universal couplings, tire couplings, jaw couplings, star couplings, diaphragm couplings, drum couplings, grid couplings, Oldham couplings, flange couplings, clip-shell couplings, roller-chain couplings, safety couplings, and other customized coupling designs.

This broad product range is useful because not every drive system should use the same coupling type. A manufacturer capable of supplying different designs can compare alternatives and recommend a solution based on torque, speed, misalignment, vibration, temperature, maintenance, and safety requirements.

12. Selection Checklist for Buyers and Engineers

Before ordering a GA drum gear coupling, confirm the following information:

1. What are the motor or prime-mover power, rated speed, and starting characteristics?

2. What are the normal operating torque, peak torque, braking torque, and reversing torque?

3. What are the driving and driven shaft diameters and available shaft lengths?

4. What keyway, spline, shrink-fit, or other shaft-connection standard is required?

5. What are the required coupling dimensions, shaft spacing, and installation clearances?

6. Is the equipment horizontal, vertical, floating-shaft, or otherwise unusually arranged?

7. What angular, radial, and axial movement is expected during operation?

8. What are the ambient temperature, operating temperature, humidity, dust, water, chemical, and corrosion conditions?

9. What is the required maintenance interval and what level of access is available?

10. Are balancing, material certificates, inspection records, special coatings, or third-party approvals required?

11. Does the coupling need customized bores, hubs, seals, spacers, flanges, or mounting features?

12. What failure consequences and safety requirements apply to the equipment?

Providing complete information at the quotation stage helps the manufacturer recommend the correct GA model or a customized alternative. It also reduces the risk of later dimensional changes, installation delays, or insufficient torque capacity.

13. Technical Data Notes

The published mass and moment of inertia values are approximate. They are calculated according to the maximum shaft-hole length and the minimum shaft-hole diameter for each model. The actual values may vary according to bore selection, hub configuration, material, machining, and customization.

The listed torque values represent nominal ratings under the stated technical conditions. They should not be interpreted as permission to operate continuously at overload. Application-specific service factors and peak-load analysis remain necessary.

Where gear surfaces are nitrided or surface hardened, the supplied notes indicate that the nominal torque value may be multiplied by 1.3. This increase should be confirmed in the final technical documentation because the permissible rating also depends on material properties, heat-treatment quality, lubrication, speed, temperature, misalignment, and load spectrum.

The maximum diameter of dz is specified as 220 mm. Bore sizes marked with an asterisk are identified as suitable only for d2 selection. These details should be reviewed carefully when selecting a coupling with different shaft diameters on the two sides.

14. Frequently Asked Questions

Q1: What is a GA drum gear coupling?

A GA drum gear coupling is a flexible mechanical coupling that transmits torque through two external-toothed hubs and an internally toothed drum-shaped sleeve. The design allows controlled angular, radial, and axial shaft movement while maintaining positive torque transmission.

Q2: What is the torque range of the GA series?

The series covers nominal torque ratings from 800 N·m for GA1 to 3,500,000 N·m for GA30. The correct model depends on operating torque, peak torque, speed, shaft dimensions, service factor, and environmental conditions.

Q3: Can the coupling compensate for shaft misalignment?

Yes. The drum-shaped gear design accommodates defined angular, radial, and axial misalignment. However, it should not be used to compensate for excessive installation errors. Accurate initial alignment is still necessary for long service life.

Q4: Does the coupling require lubrication?

Yes. Gear teeth require suitable grease to reduce friction and wear, control heat, and protect the tooth surfaces. The quantity varies by model, from approximately 55 mL for GA1 to approximately 59,000 mL for GA30 according to the supplied technical table.

Q5: Is the GA coupling suitable for high-temperature equipment?

Its metal construction is suitable for many high-temperature industrial applications, but the actual limit depends on material, seals, grease, speed, and surrounding equipment. The application temperature should be provided to the manufacturer before selection.

Q6: Can the gear teeth be surface hardened?

Yes. Nitriding or other surface-hardening treatments can be specified where improved wear resistance or increased torque capacity is required. The supplied technical information indicates a possible 1.3 multiplier for nominal torque after nitriding or surface hardening, subject to final engineering confirmation.

Q7: Is the GA coupling suitable for mining and crushers?

Yes. Its high torque capacity, robust metal construction, and misalignment compensation make it suitable for many mining, quarrying, conveyor, feeder, and crusher applications. Peak torque and impact loads must be considered during selection.

Q8: Can Zhongye manufacture non-standard couplings?

Yes. The company undertakes customized coupling design and manufacture, including special bores, keyways, hub dimensions, materials, seals, spacers, flanges, coatings, and other non-standard requirements.

Q9: What information is needed for a custom quotation?

Important information includes power, speed, normal and peak torque, shaft diameters, shaft lengths, keyway details, center distance, installation orientation, misalignment, ambient conditions, duty cycle, braking requirements, and any required standards or inspection documents.

Q10: How does a gear coupling compare with an elastomeric coupling?

A gear coupling generally offers higher torque capacity, greater resistance to shock, and better suitability for severe industrial environments. An elastomeric coupling may provide better torsional damping, lower weight, and simpler maintenance in moderate-duty systems. The best choice depends on the requirements of the complete drive.

Q11: How should coupling failure be prevented?

Use the correct model, maintain accurate alignment, apply the specified grease, protect the seals, inspect the gear teeth, tighten fasteners correctly, and monitor vibration and temperature. Reevaluate the coupling if the motor, gearbox, speed, brake, or load conditions change.

Q12: Are the catalog dimensions suitable for every installation?

The catalog provides standard dimensions and bore selections, but the final arrangement should be verified against the actual equipment drawing. Customized shaft holes, special mounting arrangements, or unusual operating conditions may require an engineering review.

15. Conclusion

The GA drum gear coupling is a robust solution for high-torque power transmission where equipment must tolerate operating misalignment and severe industrial conditions. Its external-toothed hubs and internally toothed drum sleeve create a strong, flexible connection that supports high torque, stable rotation, and controlled compensation of angular, radial, and axial shaft movement.

The GA1 to GA30 range provides extensive selection flexibility, with nominal torque capacity from 800 N·m to 3,500,000 N·m and allowable speeds appropriate to both smaller high-speed drives and large low-speed industrial systems. Steel or ductile-iron construction, optional surface hardening, durable sealing, and serviceable lubrication further support long-term performance.

Compared with rigid couplings, the GA design offers greater tolerance for operating movement. Compared with many elastomeric couplings, it provides higher torque capacity and stronger resistance to heat and shock. Compared with lighter precision couplings, it offers the ruggedness required by mining, steel, lifting, port, marine, pulp and paper, and other heavy industries.

The reliability of any coupling depends on correct engineering, not only on the coupling itself. Proper torque selection, speed verification, shaft compatibility, alignment, lubrication, sealing, inspection, and maintenance are essential. Zhongye Heavy Industry Technology supports these requirements through integrated research and development, heavy and precision manufacturing facilities, quality control, customization capability, technical consultation, and after-sales service.

For applications requiring a durable, high-capacity flexible shaft connection, the GA drum gear coupling provides a practical combination of mechanical strength, operating flexibility, production capability, and lifecycle value.

References

1. Q/YG12006X-2018, Technical Standard for GA Type Drum Gear Couplings.

2. GA Type Drum Gear Coupling Basic Parameters and Main Dimensions, supplied technical specification.

3. General principles of industrial shaft alignment, coupling installation, and rotating machinery maintenance.

4. Standard engineering practices for gear coupling lubrication, sealing, inspection, and service-factor selection.

5. Manufacturer-provided information on coupling materials, manufacturing facilities, customization, quality control, and application industries.

Product: GA Drum gear coupling(Q/YG12006X-2018)
